FIP x FIP (Multiple Sizes)

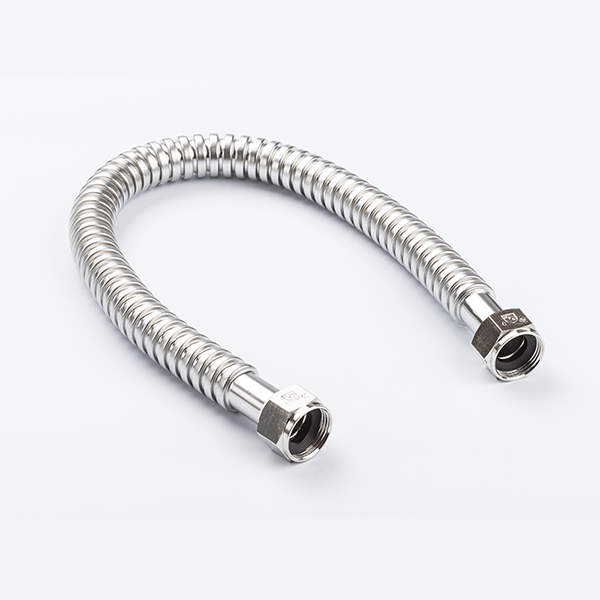

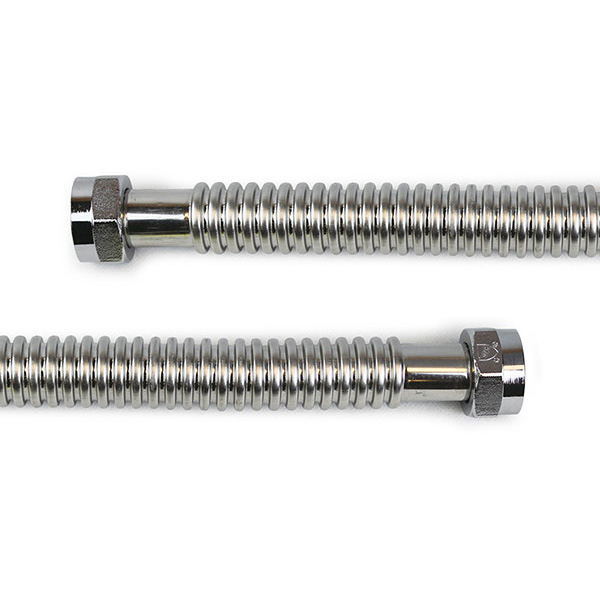

Introducing Koflex 3/4”- 2″ ID FIP x FIP water heater connectors with lengths ranging from 12″- 24″. These connectors are built to last with stainless-steel 304 tubing, chrome plated brass connection nuts, and high-quality EPDM gaskets. They are UPC certified and rigorously tested for optimal performance.

-Factory Leak Tested
-Corrosion & Scaling Resistant
-No Special Tools Required
-Minimal Use of Fittings
-Environmentally Friendly Product
-Multiple Sizes for Any Application

Back to List

Models

  • FIP x FIP (3/4” ID) Water Heater Connectors

    ID

    Part #

    Description

    Qty/Box

    3/4″

    KFWC-034-SS-1010-12

    3/4″ FIP x 3/4″ FIP, 12″

    25

    3/4″

    KFWC-034-SS-1010-15

    3/4″ FIP x 3/4″ FIP, 15″

    25

    3/4″

    KFWC-034-SS-1010-18

    3/4″ FIP x 3/4″ FIP, 18″

    25

    3/4″

    KFWC-034-SS-1010-24

    3/4″ FIP x 3/4″ FIP, 24″

    25

    3/4″

    KFWC-034-SS-1010-36

    3/4″ FIP x 3/4″ FIP, 36″

    25

    3/4″

    KFWC-034-SS-1010-48

    3/4″ FIP x 3/4″ FIP, 48″

    25

    ID

    Part #

    Description

    Qty/Box

    3/4″

    KFWC-034-SS-1012-18

    3/4″ FIP x 1″ FIP, 18″

    25

    3/4″

    KFWC-034-SS-1012-24

    3/4″ FIP x 1″ FIP, 24″

    25

  • FIP x FIP (1” ID) Water Heater Connectors

    ID

    Part #

    Description

    Qty/Box

    1″

    KFWC-100-SS-1212-12

    1″ FIP x 1″ FIP, 12″

    12

    1″

    KFWC-100-SS-1212-18

    1″ FIP x 1″ FIP, 18″

    12

    1″

    KFWC-100-SS-1212-24

    1″ FIP x 1″ FIP, 24″

    12

    1″

    KFWC-100-SS-1213-12

    1″ FIP x 1-1/4″ FIP, 12″

    12

    1″

    KFWC-100-SS-1213-15

    1″ FIP x 1-1/4″ FIP, 15″

    12

    1″

    KFWC-100-SS-1213-18

    1″ FIP x 1-1/4″ FIP, 18″

    12

    1″

    KFWC-034-SS-1012-24

    1″ FIP x 1-1/4″ FIP, 24″

    12

  • FIP x FIP (1-1/4″ ID) Water Heater Connector

    ID

    Part #

    Description

    Qty/Box

    1-1/2″

    KFWC-114-SS-1414-18

    1-1/2″ FIP x 1-1/2″ FIP, 18″

    12

    1-1/2″

    KFWC-114-SS-1414-24

    1-1/2″ FIP x 1-1/2″ FIP, 24″

    12

  • FIP x FIP (1-1/2″ ID) Water Heater Connector

    ID

    Part #

    Description

    Qty/Box

    1-1/2″

    KFWC-114-SS-1414-18

    1-1/2″ FIP x 1-1/2″ FIP, 18″

    12

    1-1/2″

    KFWC-114-SS-1414-24

    1-1/2″ FIP x 1-1/2″ FIP, 24″

    12

  • FIP x FIP (2″ ID) Water Heater Connector

    ID

    Part #

    Description

    Qty/Box

    2″

    KFWC-200-SS-1515-18

    2″ FIP x 2″ FIP, 18″

    9

    2″

    KFWC-200-SS-1515-24

    2″ FIP x 2″ FIP, 24″

    9

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • cUPC Certified
  • ASME A112.18.6-2009/ CSA B125.6-2009
  • NSF 61 Compliant
  • NSF 372 Compliant : Lead-Free


Product Data

TubingStainless Steel 304 (ASTM A240)
Tubing Thickness0.01″ and 0.012″
FittingsChrome-Plated Brass 3771
GasketHigh-Quality EPDM
Lengths Available12″, 15″, 18″, 24″, 36″, 48″
Sizes Available (ID)3/4″, 1″, 1-1/4″, 1-1/2″, 2″
Thread StandardASME B1.20.1



Technical Data

Working PressureUp to 125 psig
Intermittent Impulse PressureUp to 180 psig
Temperature Rating -40° F to 180° F (-40° C to 82° C)
Minimum Bend Radius2.5″ (Recommended)
