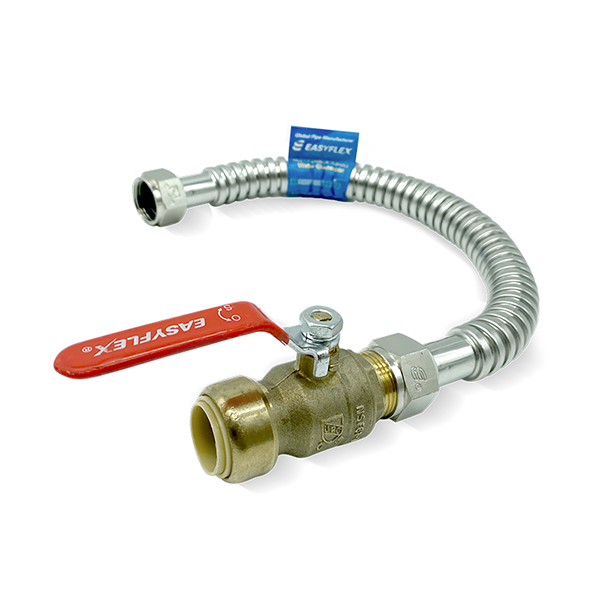

3/4” ID Push Fit Ball Valve x FIP
Introducing Koflex 3/4″ ID Push Fit Ball Valve x FIP water heater connectors, available in two lengths: 18″ and 24″. Made to last, these connectors feature stainless-steel 304 tubing, chrome-plated brass connection nuts, and high-quality EPDM gaskets. The Push Fit Ball Valve design allows for easy installation without the need for any tools. Koflex stands for convenience and reliability, and these push fit connectors embody both qualities. They are UPC certified and have undergone rigorous testing to ensure optimal performance.
-Leak Tested
-Corrosion & Scaling Resistant
-No Special Tools Required
-Minimal Use of Fittings
-Environmentally Friendly Product
Technical Data
CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE
- cUPC Certified
- ASME A112.18.6-2009/ CSA B125.6-2009
- NSF 61 Compliant
- NSF 372 Compliant : Lead-Free
Product Data
| Tubing | Stainless Steel 304 (ASTM A240) |
| Tubing Thickness | 0.01″ and 0.012″ |
| Fittings | Chrome-Plated Brass 3771 |
| Gasket | High-Quality EPDM |
| Lengths Available | 15″, 18″, 24″ |
| Sizes Available (ID) | 3/4″ |
| Thread Standard | ASME B1.20.1 |
Technical Data
| Working Pressure | Up to 125 psig |
| Intermittent Impulse Pressure | Up to 180 psig |
| Temperature Rating | -40° F to 180° F (-40° C to 82° C) |
| Minimum Bend Radius | 2.5″ (Recommended) |
