Copper & Stainless Steel Vibraion Absorbers
Applications :

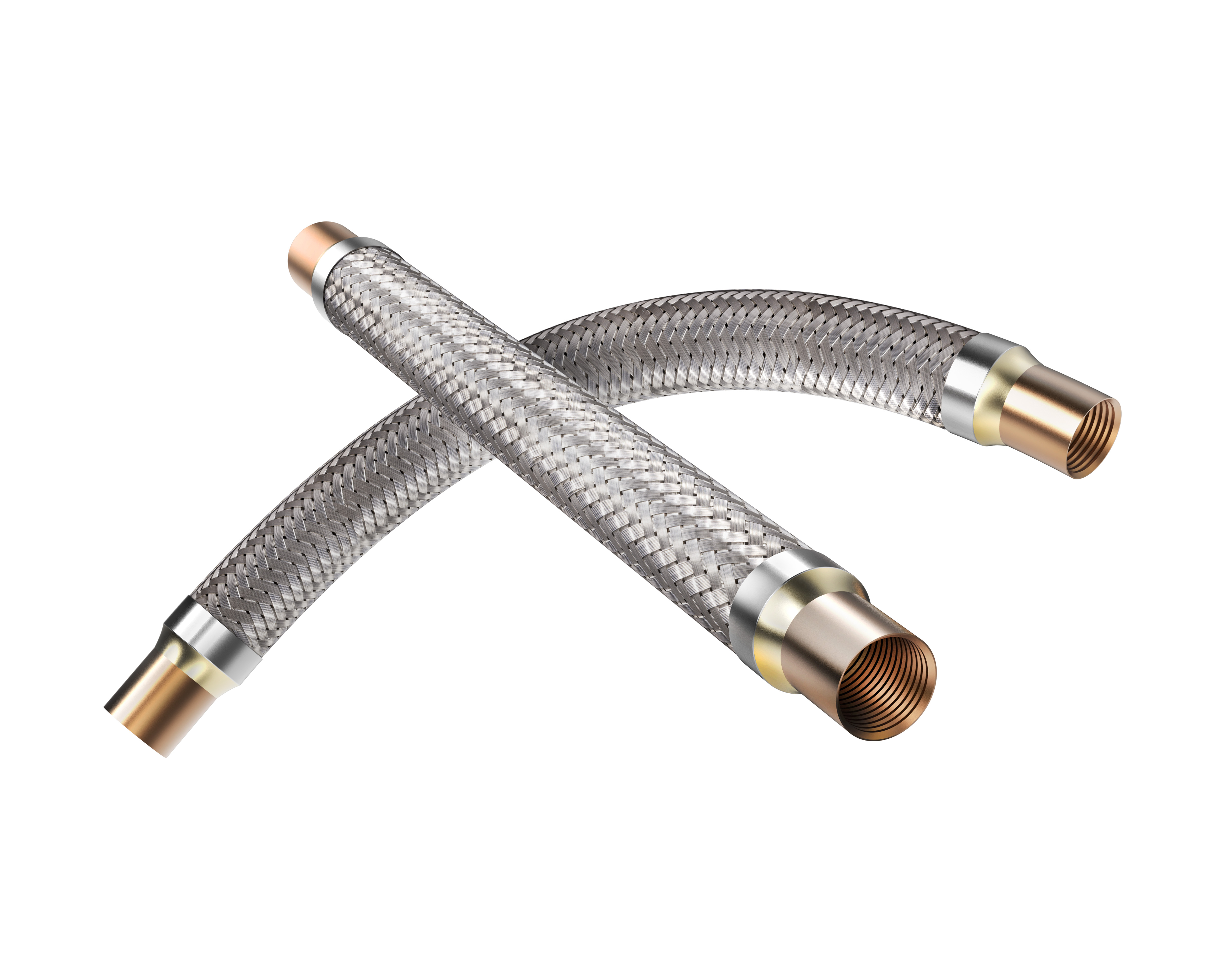

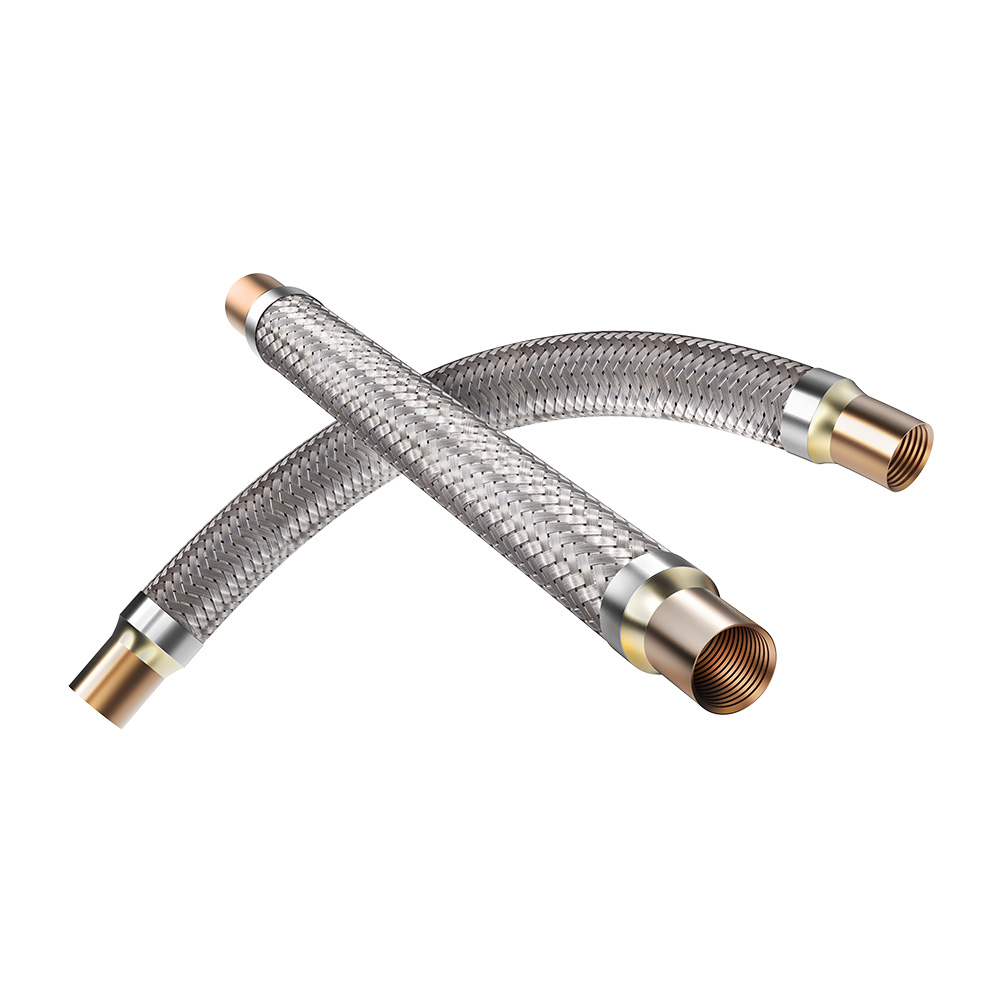

• Copper & Stainless Steel Vibration Absorbers
Introduction
• Vibration absorbers are designed to install in the suction and discharge lines of air conditioning and refrigeration systems to reduce vibration through system piping.

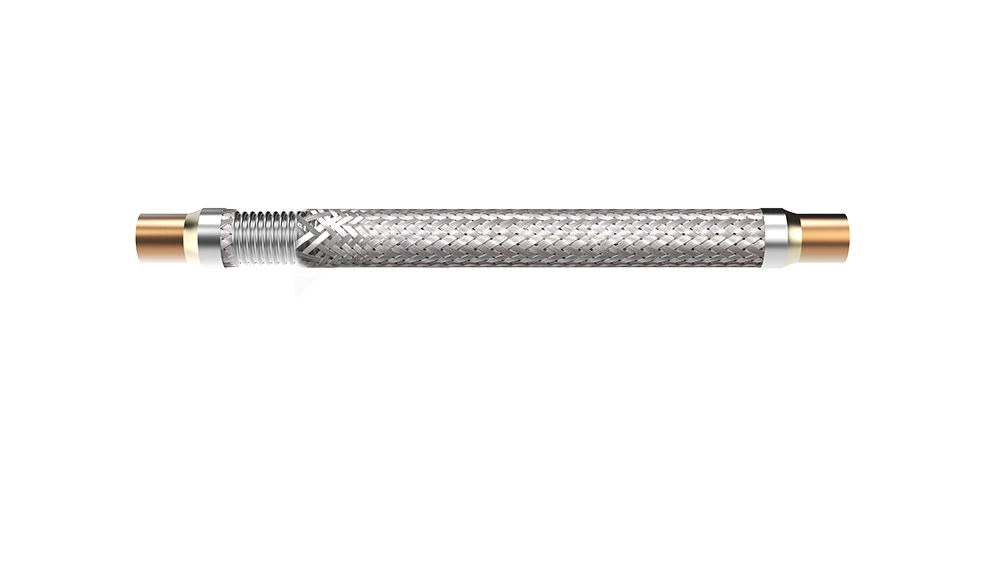

Vibration absorbers are produced by deep pitch corrugated tubing for increased flexibility and vibration absorption, and covered by high tensile wire braid for superior strength.
The tubing and braid are reinforced by ferrules at each end, and connected to a female copper tube end high temperature brazed alloys.
Each Vibration absorber is tested for pressure and then carefully vacuum tested using a highly sensitive helium mass spectrometer leak detection device.
Models
-

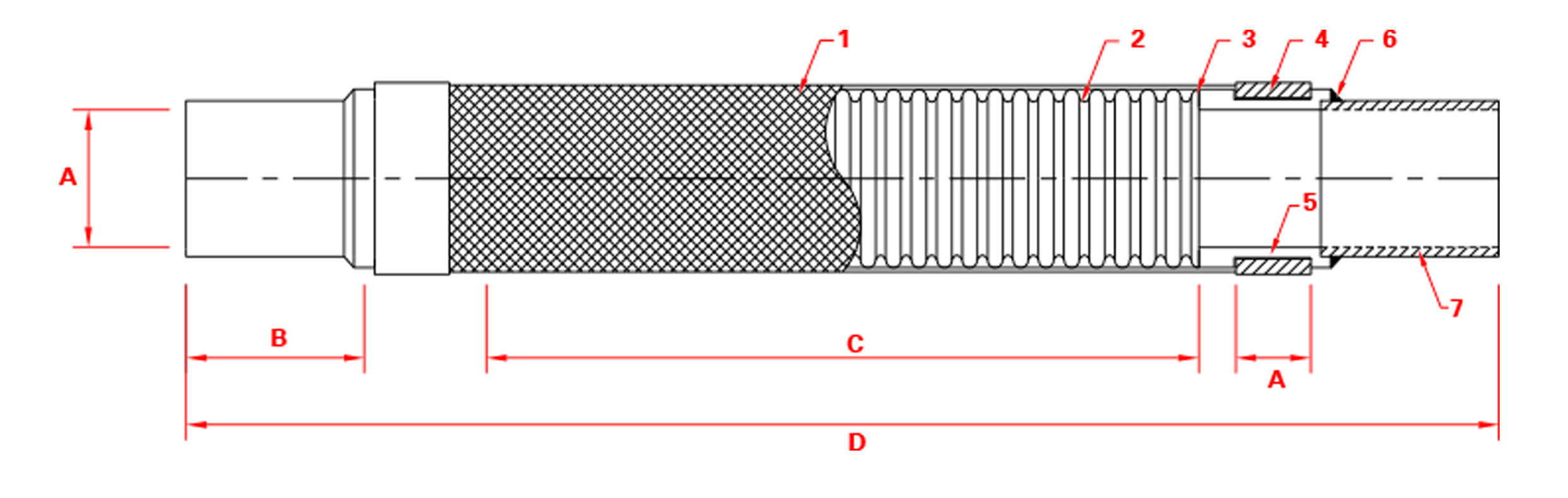

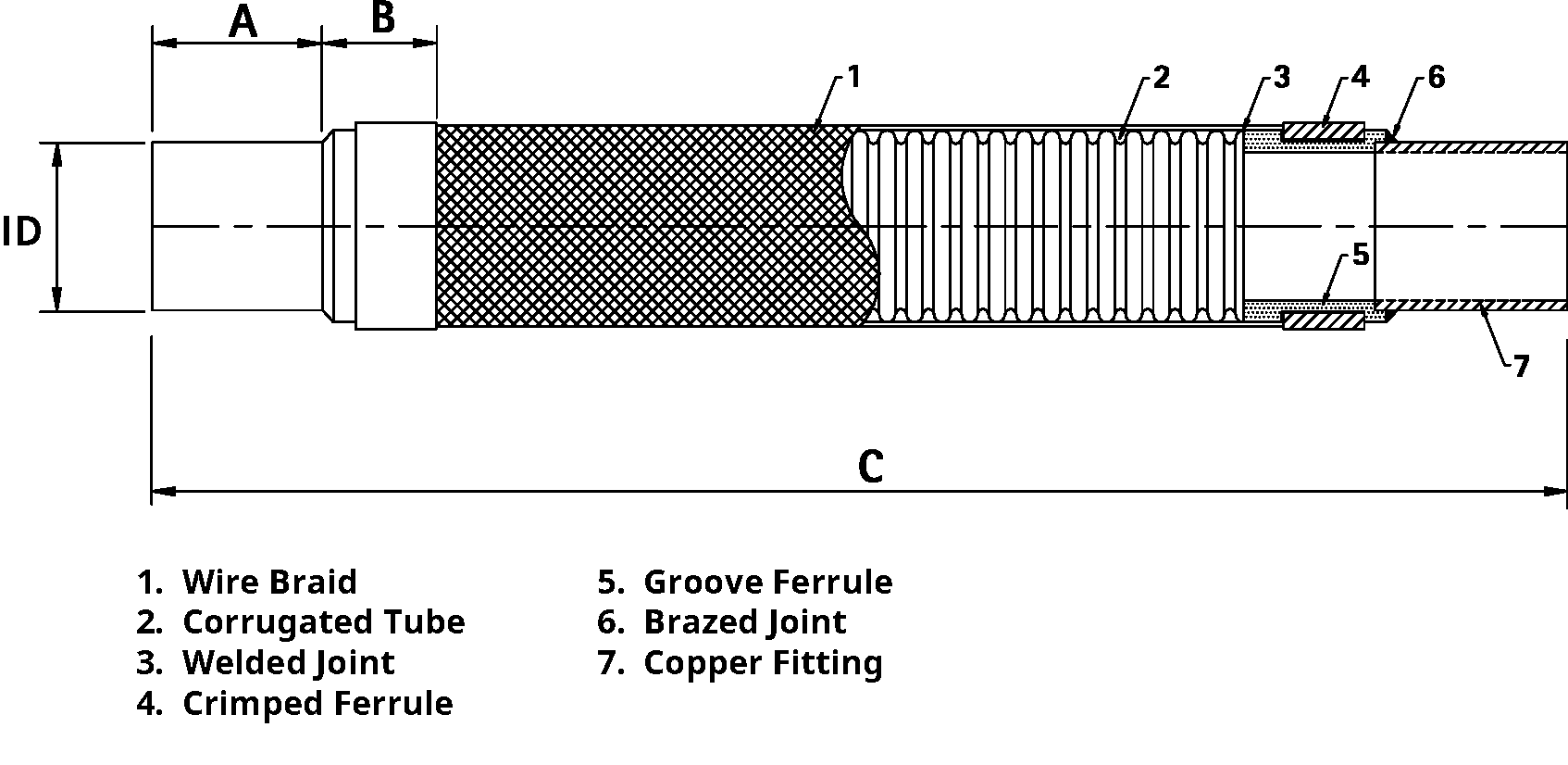

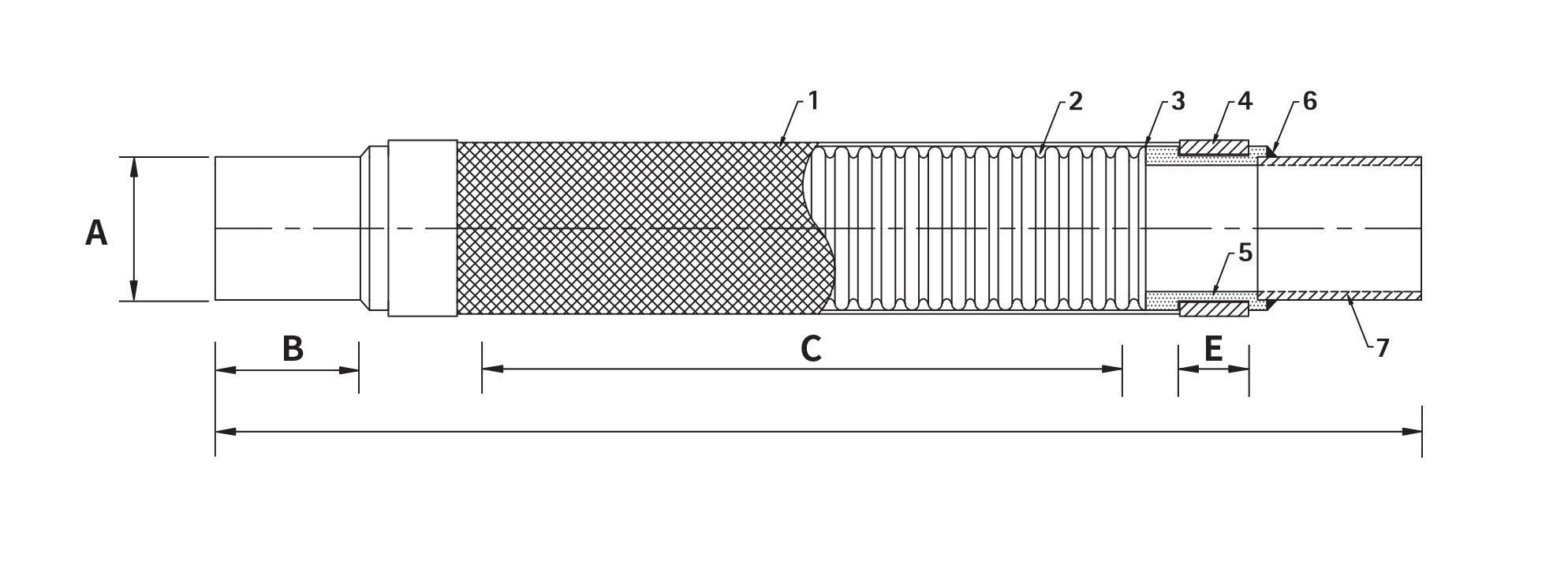

ID Part# Dimension (mm) Mas Working
Pressure
(psig)Burst
Pressure
(Psig)A B C 1/4" KFB-VASCT-014 3/4 0.51 8-1/16 500 2,500 3/8" KFB-VASCT-038 3/4 0.51 8-1/2 500 2,500 1/2" KFB-VASCT-012 3/4 0.51 9 500 2,500 5/8" KFB-VASCT-058 7/8 0.59 9-3/4 500 2,500 3/4" KFB-VASCT-034 1-1/8 0.63 10-1/2 500 2,500 7/8" KFB-VASCT-078 1-1/4 0.67 12 500 2,500 1-1/8" KFB-VASCT-118 1-1/2 0.79 13 500 2,500 1-3/8" KFB-VASCT-138 1-9/16 0.79 15-1/2 500 2,500 1-5/8" KFB-VASCT-158 2 0.87 17 500 2,500 2-1/8" KFB-VASCT-218 2-3/8 1 20-1/2 390 1,950 2-58" KFB-VASCT-258 3 1 24-1/4 340 1,700 3-1/8" KFB-VASCT-318 3-5/16 1 27 300 1,500 3-5/8" KFB-VASCT-358 4-1/8 1 30 175 525 4-1/8" KFB-VASCT-418 4-5/16 1 33 175 525
Technical Data
Specification
- The tube end is made from copper.
- hose and copper tube end are brazed welded.
- All parts have been cleaned and dehydrated for refrigeration service standard.
- Each unit is, has been tested, cleaned and dehydrated and sealed in plastic film
- All basic components are thoroughly physically and chemically analyzed.
- Precise end sizes.
- Perfect inspection.
Materials
| Flexible Tubing | Stainless Steel 304 / Cooper |
| Wire Braid | Stainless Steel 304 / Copper |
| Ferrule | Stainless Steel 304 / Copper |
| Tube End | Copper |
