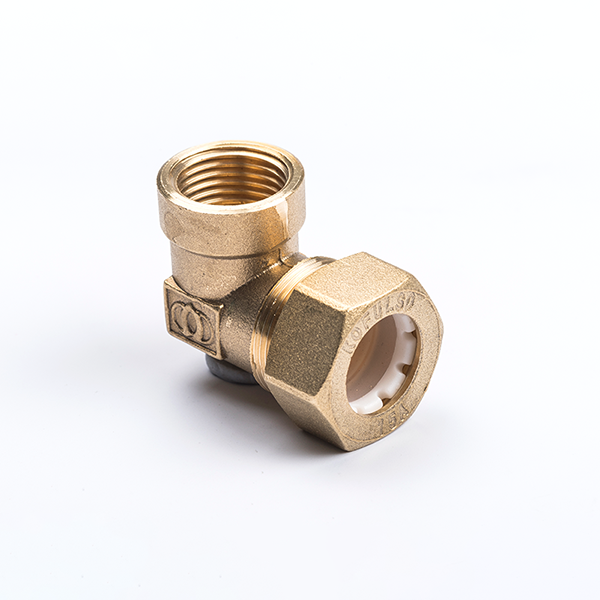

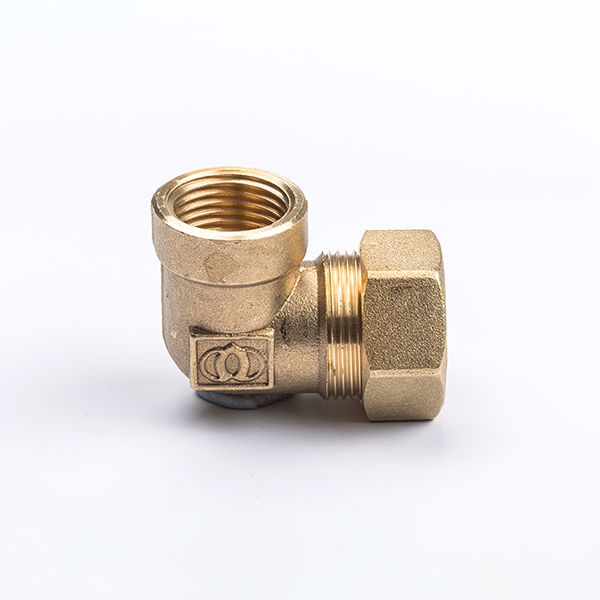

Female Elbow

Introducing the Easyflex Quicksnap female elbow connector, designed to fit seamlessly with our Vectorflow water CSST. This elbow connector is crafted from high-quality brass and is available in three sizes: 1/2″, 3/4″, and 1″.

Back to List

Models

  • Part #

    Description

    KFS-012-EL

    ½” 90° Female Elbow

    KFS-034-EL

    ¾” 90° Female Elbow

    KFS-100-EL

    1″ 90° Female Elbow

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • UPC / NSF 61 Compliant for Safe Drinking Water



 Materials

Body & NutBrass UNS C 37700 (ASTM DS-561)
Sealing RingSilicone
Isolation RingRing Nylon 66



Technical Data

Sizes½”, ¾”, 1″, 1¼”
Rated Working Pressure147 psi
