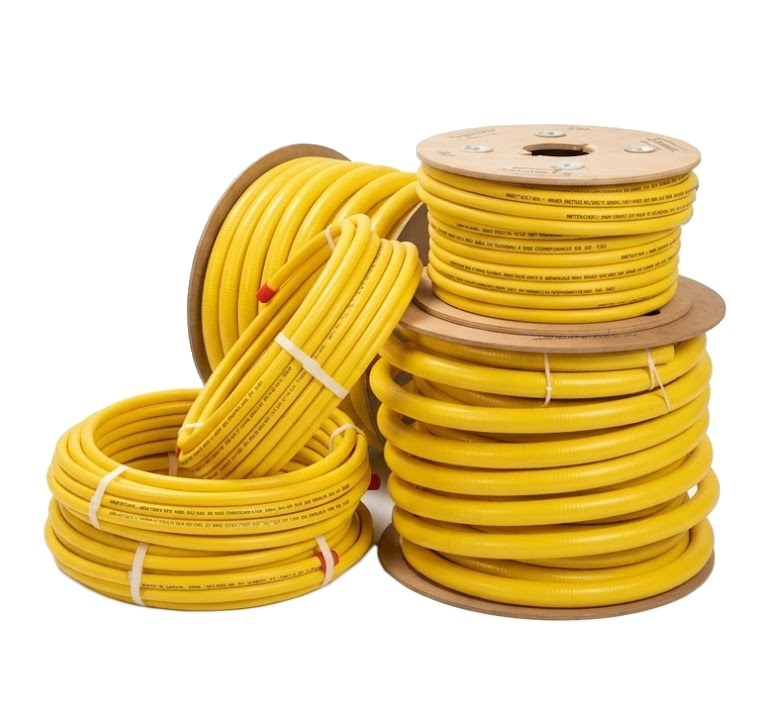

Gas CSST/ yellow PE jacket

Bestflex Corrugated Staiinless Steel Tubing(CSST) is a flexible, durable, lightweight, and corrusion - resistant gas pipe.
Flexible CSST piping system for natural and propane gas applications that is engineered and manufactured to address the inherent problems associated with rigid pipe systems.

Back to List

Models

  • Gas CSST/ yellow PE jacket

    ID

    Part #

    Description

    U/M

    3/8"

    NGL-038-YW-050

    1/2″ M.EFV x 1/2″ MIP, 12″

    Box

    3/8"

    NGL-038-YW-100

    1/2″ M.EFV x 1/2″ MIP, 18″

    Roll

    3/8"

    NGL-038-YW-250

    1/2″ M.EFV x 1/2″ MIP, 24″

    Roll

    1/2"
    		NGL-012-YW-050
    		1/2" ID, Yellow PE Jacket,  50 ft
    		Box
    1/2"
    		NGL-012-YW-100
    		1/2" ID, Yellow PE Jacket,  100 ft
    		Roll
    1/2"
    		NGL-012-YW-250
    		1/2" ID, Yellow PE Jacket,  250 ft
    		Roll
    3/4"
    		NGL-034-YW-050
    		3/8" ID, Yellow PE Jacket,  50 ft
    		Box
    3/4"
    		NGL-034-YW-100
    		3/4" ID, Yellow PE Jacket,  100 ft
    		Roll
    3/4"
    		NGL-034-YW-250
    		3/4" ID, Yellow PE Jacket,  250 ft
    		Roll
    1"
    		NGL-100-YW-050
    		1" ID, Yellow PE Jacket,  50 ft
    		Box
    1"
    		NGL-100-YW-100
    		1" ID, Yellow PE Jacket,  100 ft
    		Roll
    1"
    		NGL-100-YW-250
    		1" ID, Yellow PE Jacket,  250 ft
    		Roll
    1-1/4"
    		NGL-114-YW-150
    		1-1/4" ID, Yellow PE Jacket,  150 ft
    		Roll
    1-1/2"
    		NGL-112-YW-150
    		1-1/2" ID, Yellow PE Jacket,  150 ft
    		Roll
    2"NGL-200-YW-150
    		2" ID, Yellow PE Jacket,  150 ft
    		Roll

Technical Data


Tubing MaterialStainless Steel 304 (ASTM A240)
CoatingPolyethyleneConductive Jacket
Protective Coating ColorYellow/ Black
Available Sizes
3/8″
1/2″
3/4″
1″
1-1.4″
1-1.2″
2″
EHD
13
18
23
31
37
47
62
Available Lengths(Rolls)50ft / 100 ft / 250ft
Operating Pressure 25psig
Min. Bend Radius(Recommended)2″4″
Minimum Tightening Torque110130160190210230260
