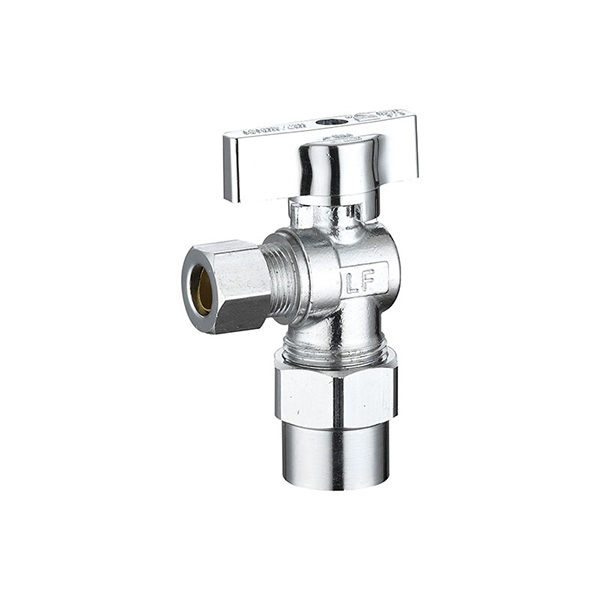

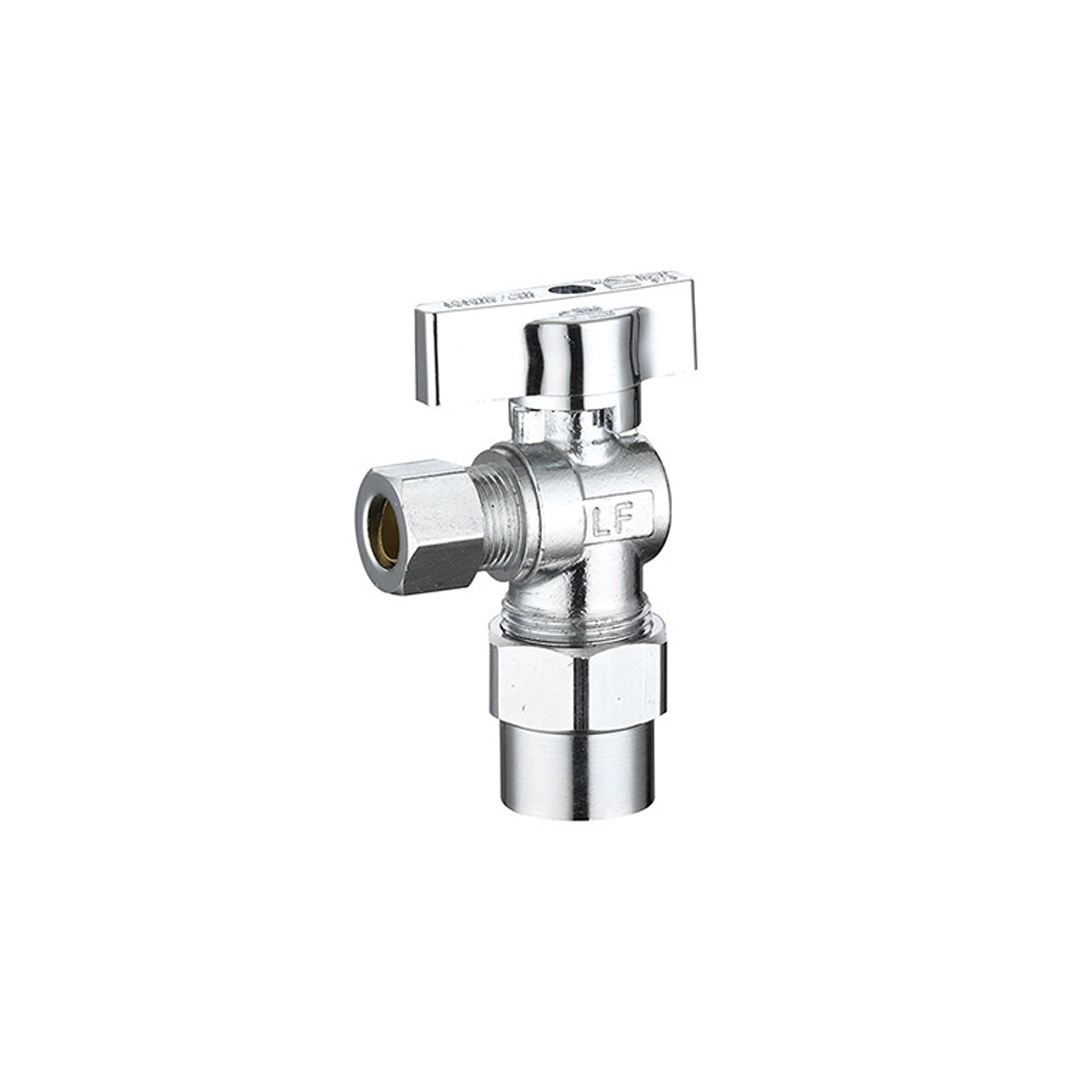

CPVC Solvent Weld x Compression Angle

Introducing Koflex 1/4 turn, CPVC solvent weld x compression angle water supply stop valves. These valves are the perfect solution for anyone looking for a reliable and durable supply stop valve that connects seamlessly to CPVC fittings. With their chrome-finished forged, lead-free brass body, these stop valves are pressure rated for 125 psi and can withstand temperatures up to 180°F. The precision machined brass ball valve is specifically engineered and manufactured with PTFE seats to provide smooth operation without freeze-ups, even after extended periods of non-use.

Back to List

Models

  • Part #

    Description

    KFSV-AG-12CP14C

    1/2″ NOM CPVC × 1/4″ OD Comp, Angle

    KFSV-AG-12CP38C

    1/2″ NOM CPVC × 3/8″ OD Comp, Angle

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • cUPC / NSF 61 Compliant for safe drinking water
  • NSF 372 Compliant : Lead-Free





Materials

Compression NutBrass
SleeveCopper
BodyLead Free Brass
StemBrass
O-RingNBR
HandleZinc
ScrewSteel
Ball SeatPTFE
Ball SeatLead Free Brass
AdapterLead Free Brass



Technical Data

Maximum Operating Temperature180°F (82°C)
Maximum Operating Pressure125 psi (8.6 bar)
