Shielded Flexible Couplings

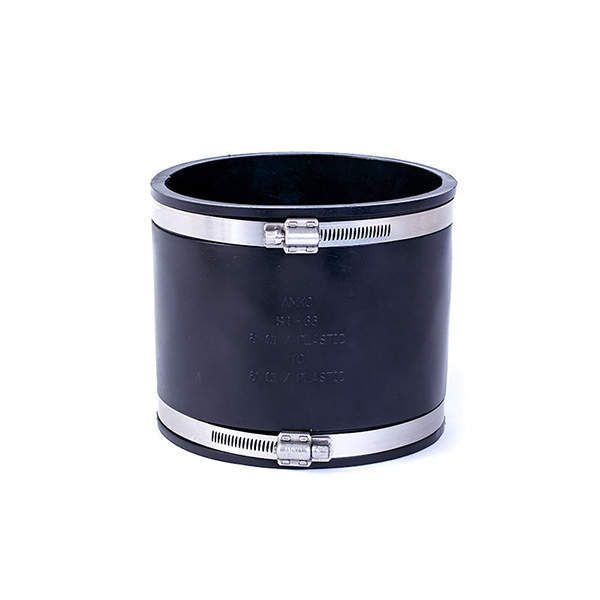

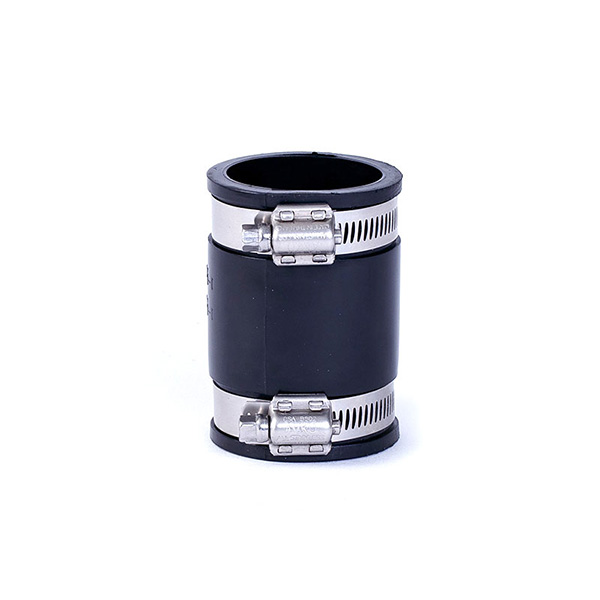

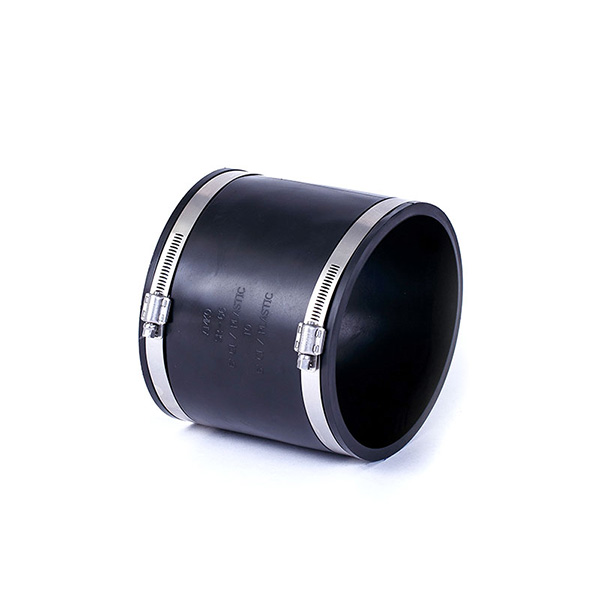

Introducing koflex Shielded flexible couplings, designed for demanding jobs. These enhanced couplings feature a clamp, band, and 5/16″ HEX screws made entirely of stainless steel for maximum reliability and resistance to corrosion. They’re available in sizes ranging from 1½” to 6″ and come with either 3 or 4 bands, for a worry-free, secure fit.
-Soft Rubber Gaskets Mold to the Pipes
-Watertight Seal
-Low Expansion and Contraction
-Resistance to Vibrations, Chemicals, and Fungus
Models
-
Part #
Description
Qty/Box
KF-FCP-112SS
1-1/2″ Shielded Flexible Coupling, 3 Bands
50
KF-FCP-200SS
2″ Shielded Flexible Coupling, 3 Bands
50
KF-FCP-300SS
3″ Shielded Flexible Coupling, 4 Bands
30
KF-FCP-400SS
4″ Shielded Flexible Coupling, 4 Bands
30
KF-FCP-600SS
6″ Shielded Flexible Coupling, 4 Bands
12
Technical Data
CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE
- UPC
- CSA
- Conforms to ASTM C1173, D5926 and IAPMO 4933
Materials
| Clamp | Stainless Steel 300 Series |
| Housing | Stainless Steel 300 Series |
| 5/16″ HEX Screw | Stainless Steel 300 Series |
| Band | Stainless Steel 300 Series |
| Gasket | Elastomeric PVC conforming to ASTM D5926 and C1173 |
Technical Data
| Installation Torque | 60 in/lbs |
