Reducing Flexible Couplings

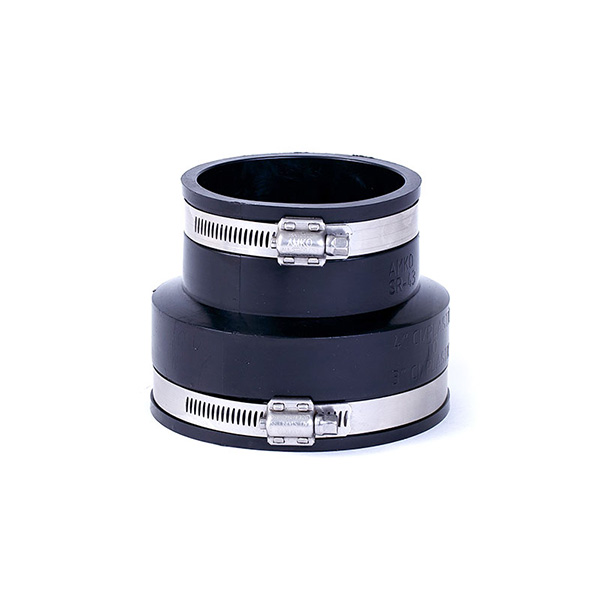

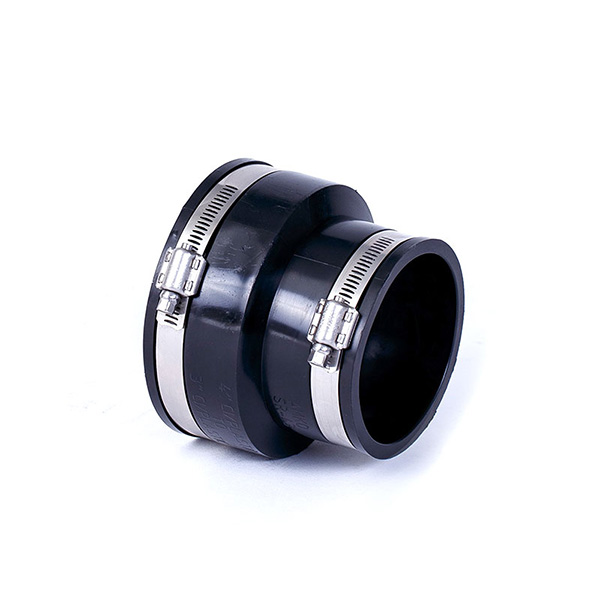

Introducing koflex Reducing flexible couplings. These couplings feature a clamp, band, and 5/16″ HEX screws made entirely of stainless steel for maximum reliability and resistance to corrosion. There are 6 reducing models to choose from ranging in sizes from 1½” to 6″ and come with 2 bands for a secure fit.
-Soft Rubber Gaskets Mold to the Pipes
-Watertight Seal
-Low Expansion and Contraction
-Resistance to Vibrations, Chemicals, and Fungus
Models
-
Part #
Description
Qty/Box
EF-FCP-R112114
1-1/2″ to 1-1/4″ Reducing Flexible Coupling, 2 Bands
50
EF-FCP-R200112
2″ to 1-1/2″ Reducing Flexible Coupling, 2 Bands
50
EF-FCP-R300112
3″ to 1-1/2″ Reducing Flexible Coupling, 2 Bands
30
EF-FCP-R300200
3″ to 2″ Reducing Flexible Coupling, 2 Bands
30
EF-FCP-R400300
4″ to 3″ Reducing Flexible Coupling, 2 Bands
30
EF-FCP-R600400
6″ to 4″ Reducing Flexible Coupling, 2 Bands
12
Technical Data
CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE
- UPC
- CSA
- Conforms to ASTM C1173, D5926 and IAPMO 4933
Materials
| Clamp | Stainless Steel 300 Series |
| Housing | Stainless Steel 300 Series |
| 5/16″ HEX Screw | Stainless Steel 300 Series |
| Band | Stainless Steel 300 Series |
| Gasket | Elastomeric PVC conforming to ASTM D5926 and C1173 |
Technical Data
| Installation Torque | 60 in/lbs |
