Ice Maker Connector w/Safeflow

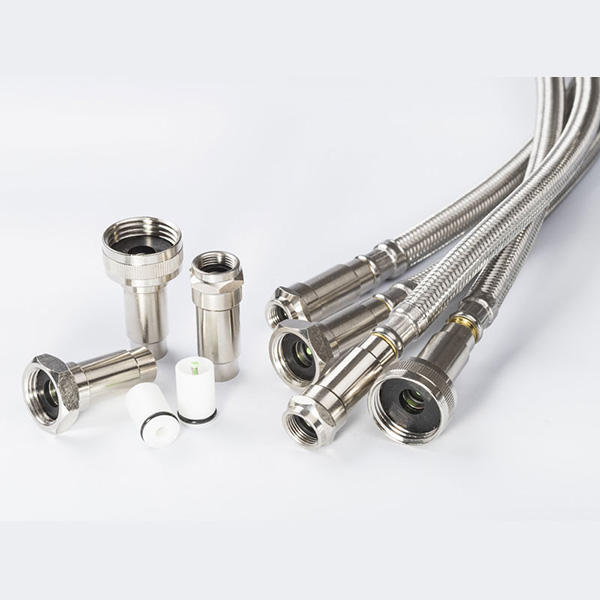

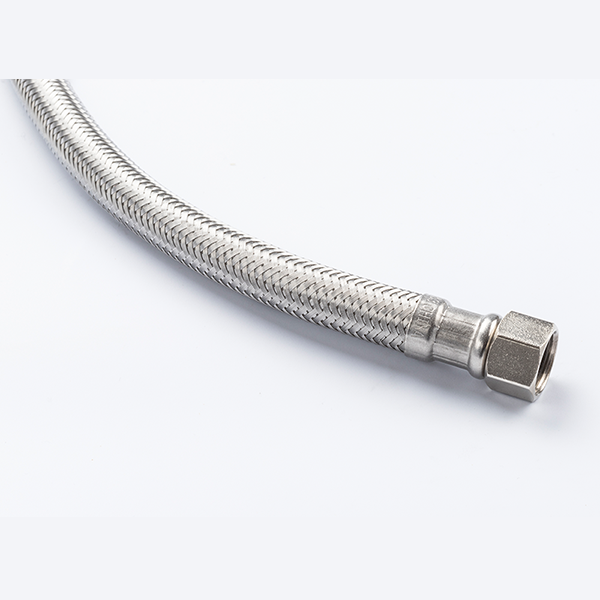

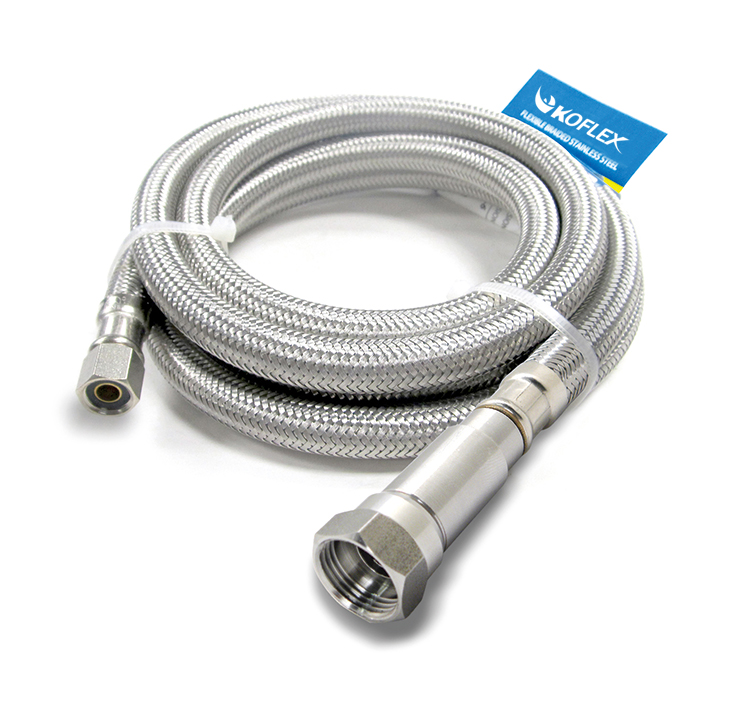

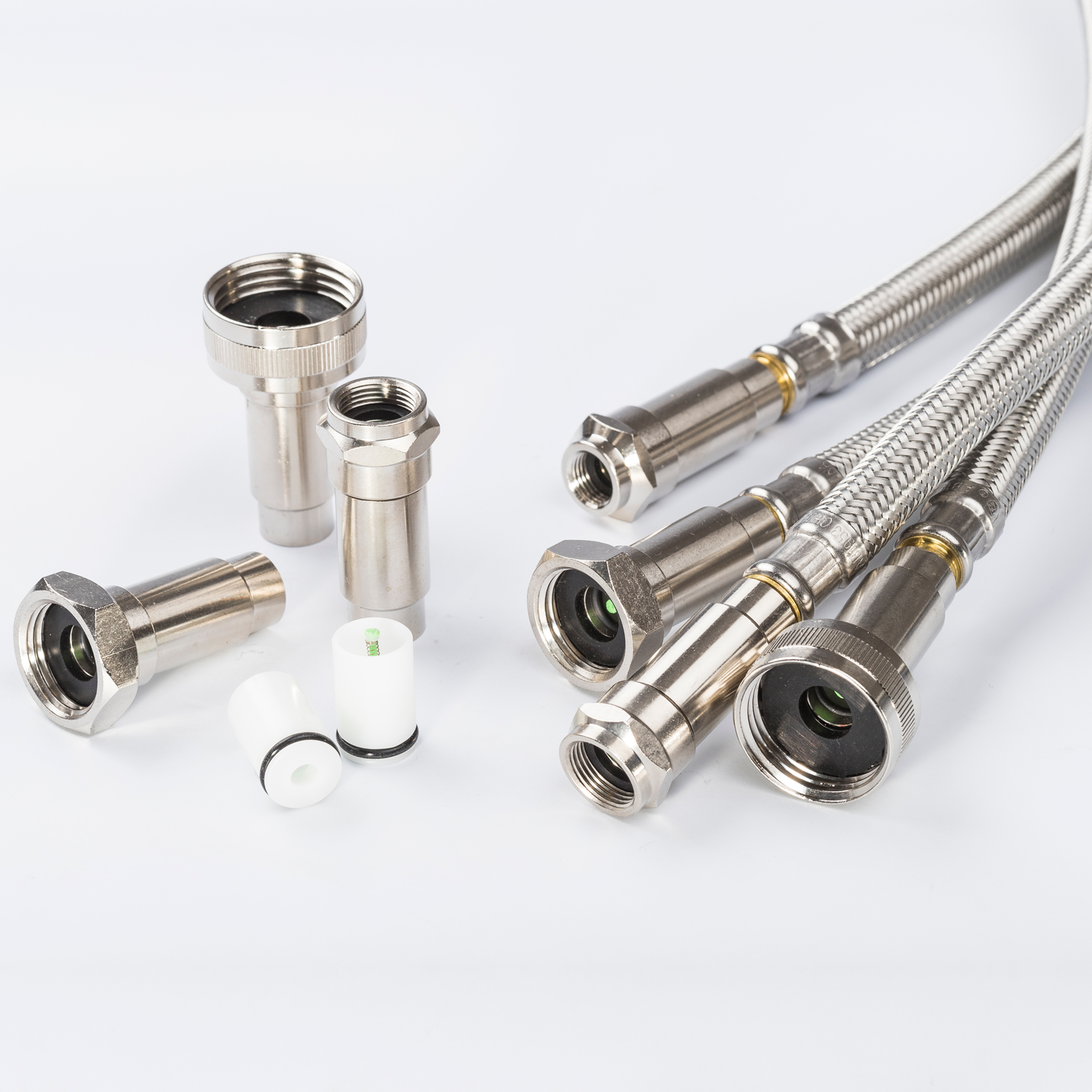

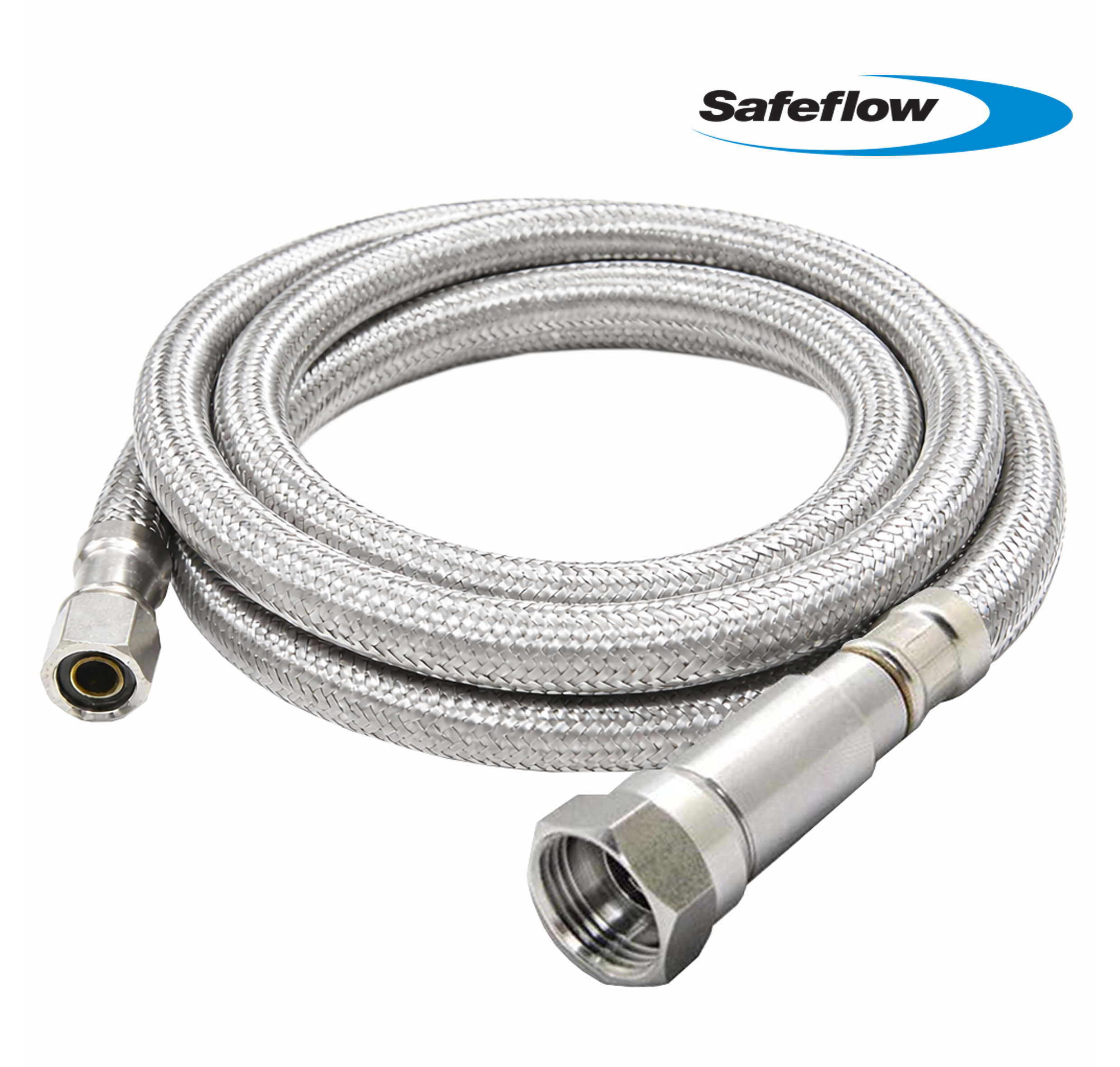

Introducing our durable Koflex braided stainless steel water connectors for refrigerator ice makers, equipped with Safeflow – an EFV (Excess Flow Valve) that helps prevent catastrophic water damage from burst lines or disconnections. These connectors feature a reinforced PVC inner hose and braided stainless steel jacket for added strength and protection. Installation is easy, with no cutting or soldering required. Our connectors come in multiple sizes and lengths and feature corrosion-resistant chrome plated brass hex nuts and a secure 12-point pneumatic crimp seal.

Back to List

Models

  • Part #

    Description

    Qty/Box

    KF-IC-14C14C-5V

    1/4″ C x 1/4″ C, Excess Flow Shut-off Valve, 5 ft

    50

    KF-IC-14C14C-6V

    1/4″ C x 1/4″ C, Excess Flow Shut-off Valve, 6 ft

    50

    KF-IC-14C14C-10V

    1/4″ C x 1/4″ C, Excess Flow Shut-off Valve, 10 ft

    50

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • cUPC / NSF 61 Compliant for safe drinking water
  • NSF 372 Compliant : Lead-Free
  • ASME A 112.18.6-2009 / CSA B 125.6-2009



Materials

JacketBraided Stainless Steel 304
Inner HoseReinforced PVC
FittingsChrome-Plated Brass



Technical Data

Rated Temperature-40° F to 180° F (-40° C to 82° C)
Rated Working Pressure125 psi (8.6 bar)
Minimum Flow2.0 gpm
Shut-off Flow2.5 – 3.5 gpm
