Dishwasher Connectors w/Safeflow

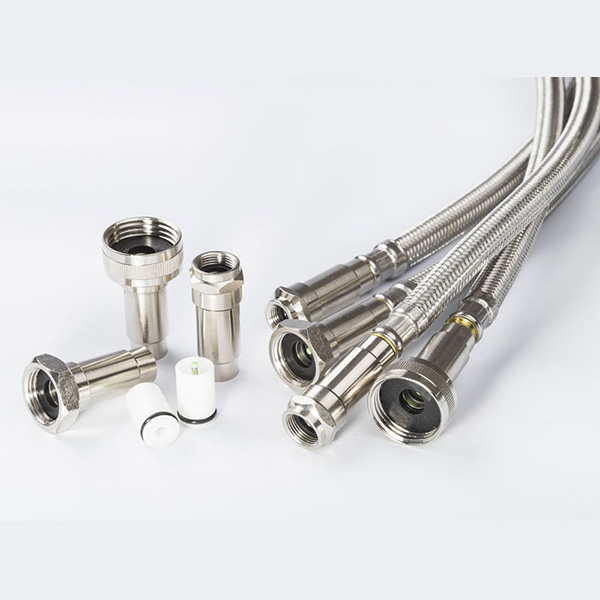

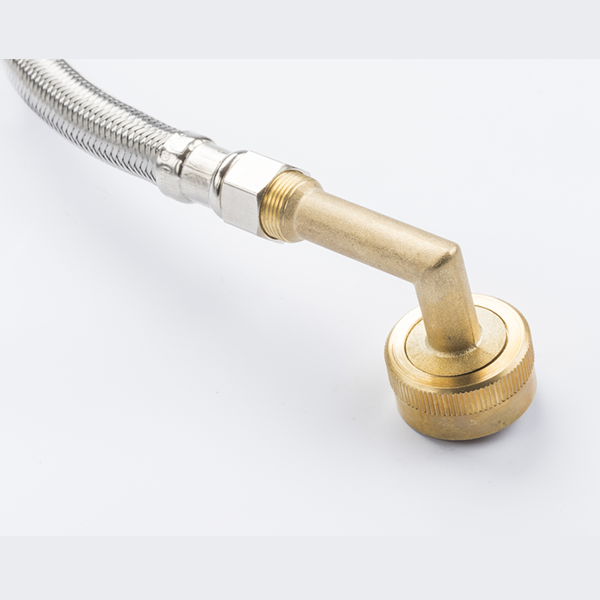

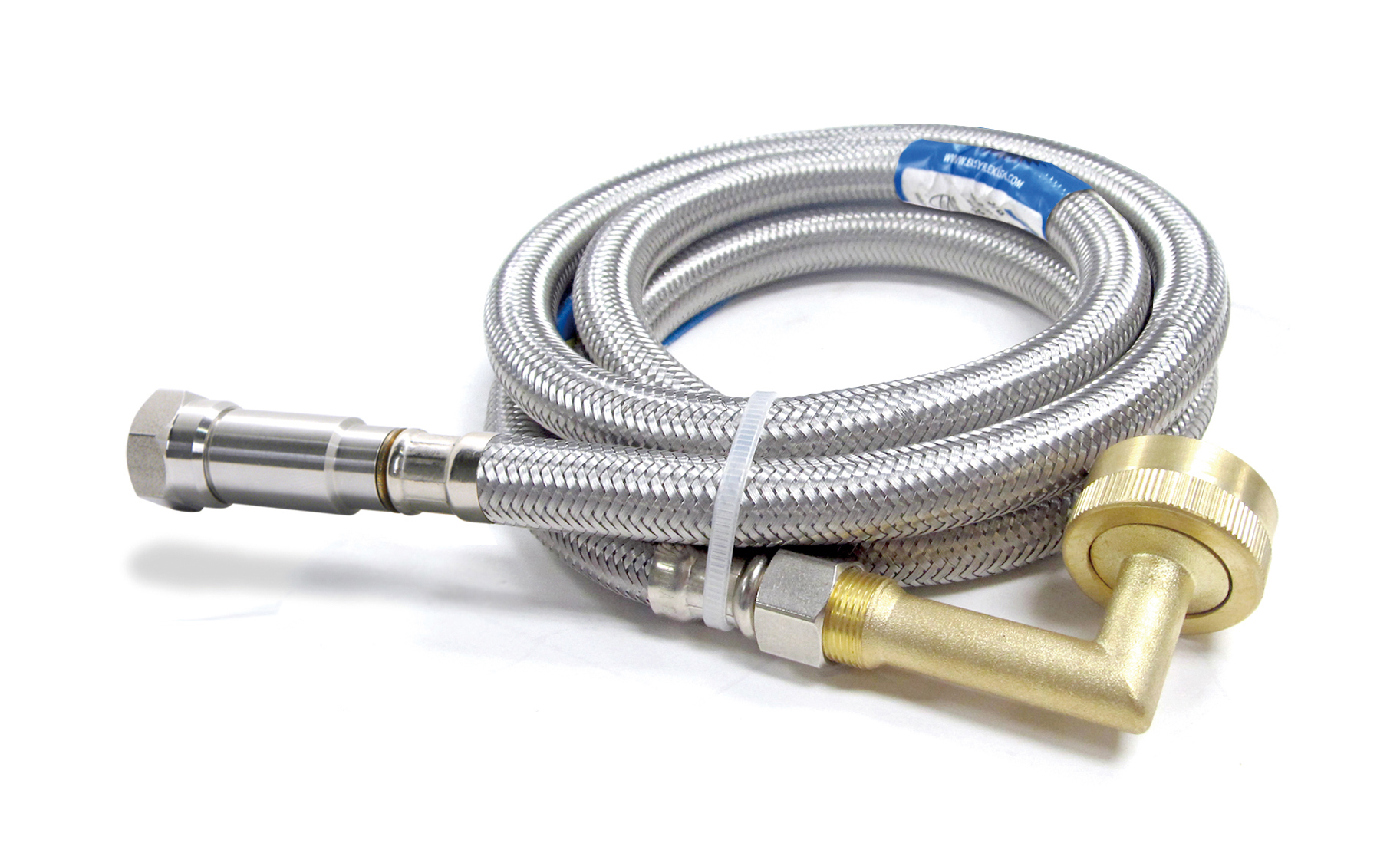

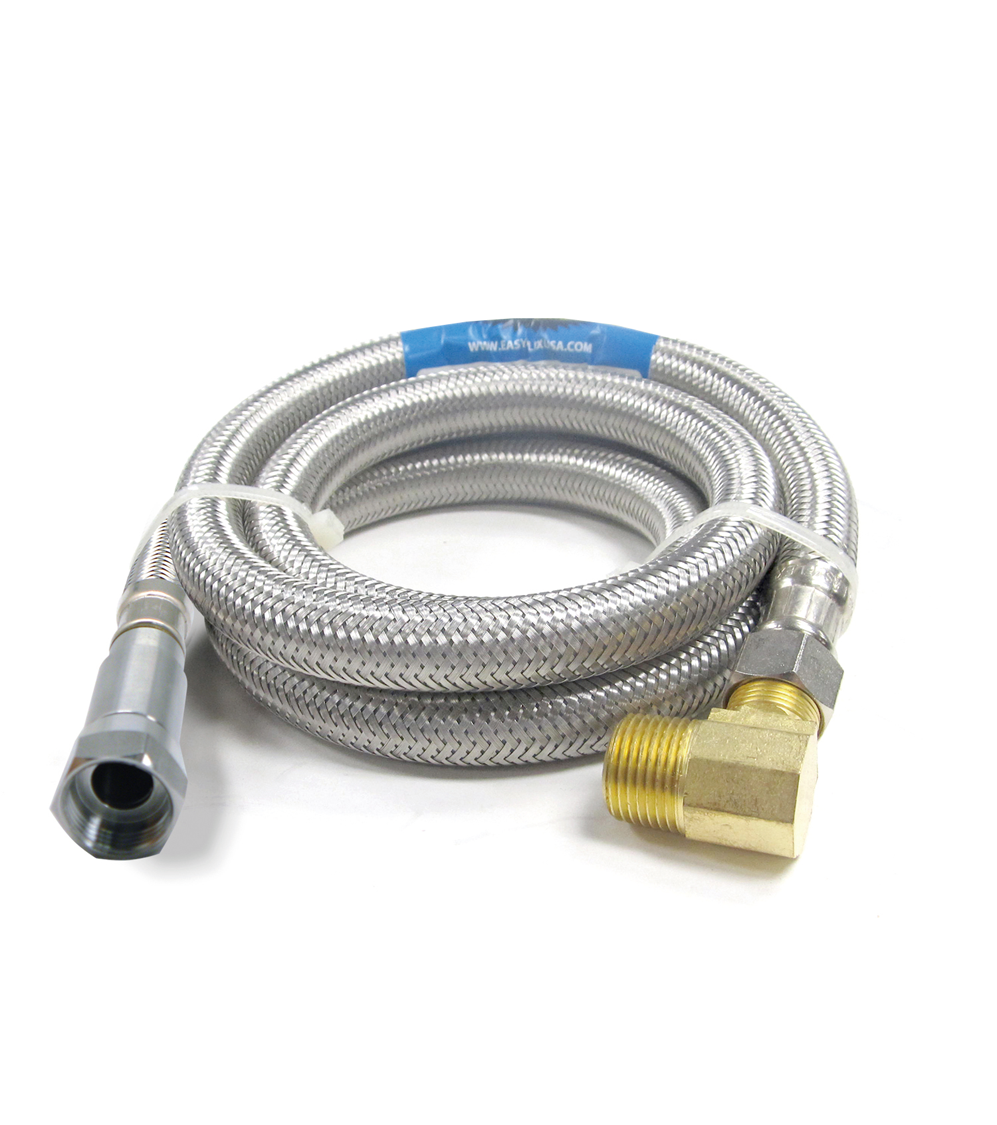

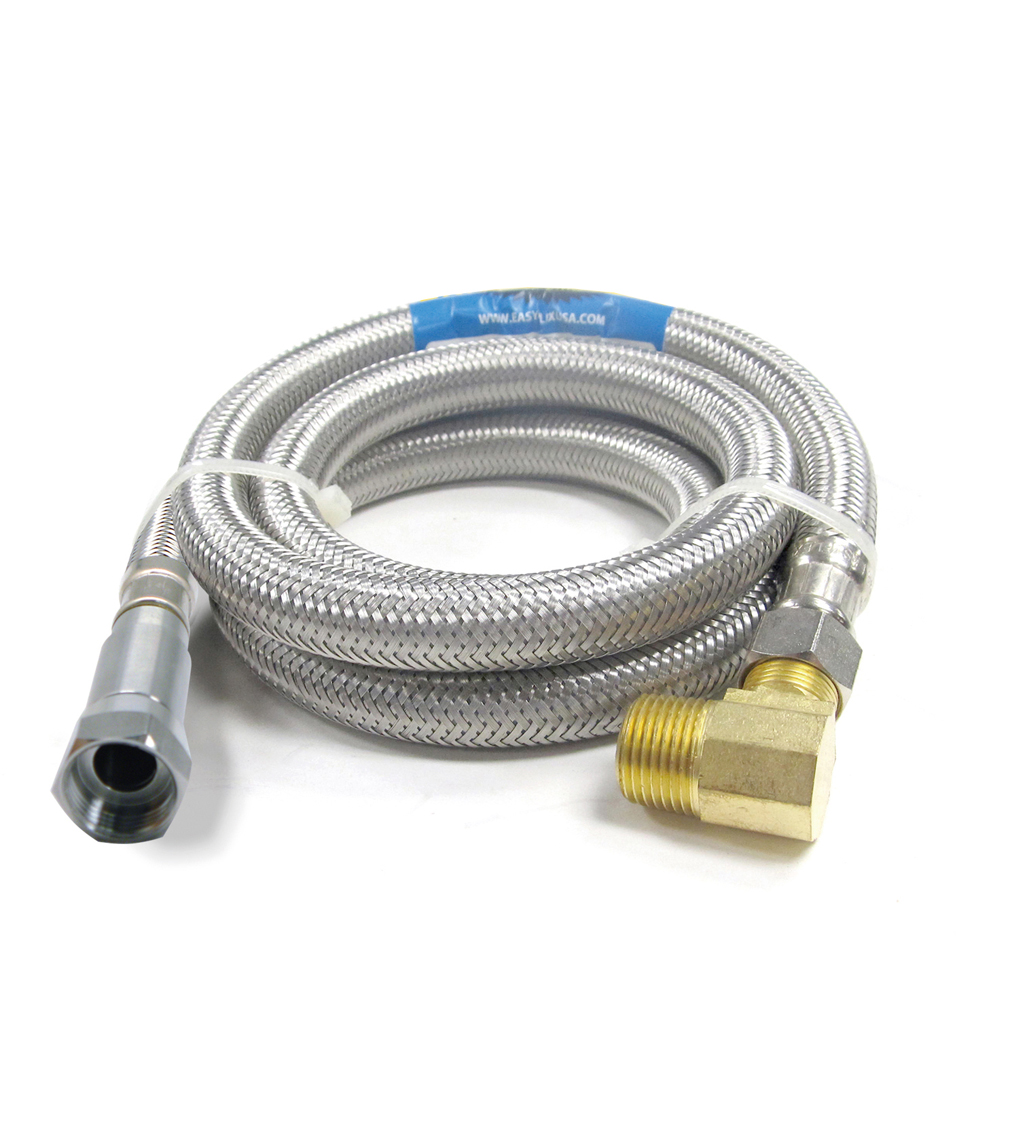

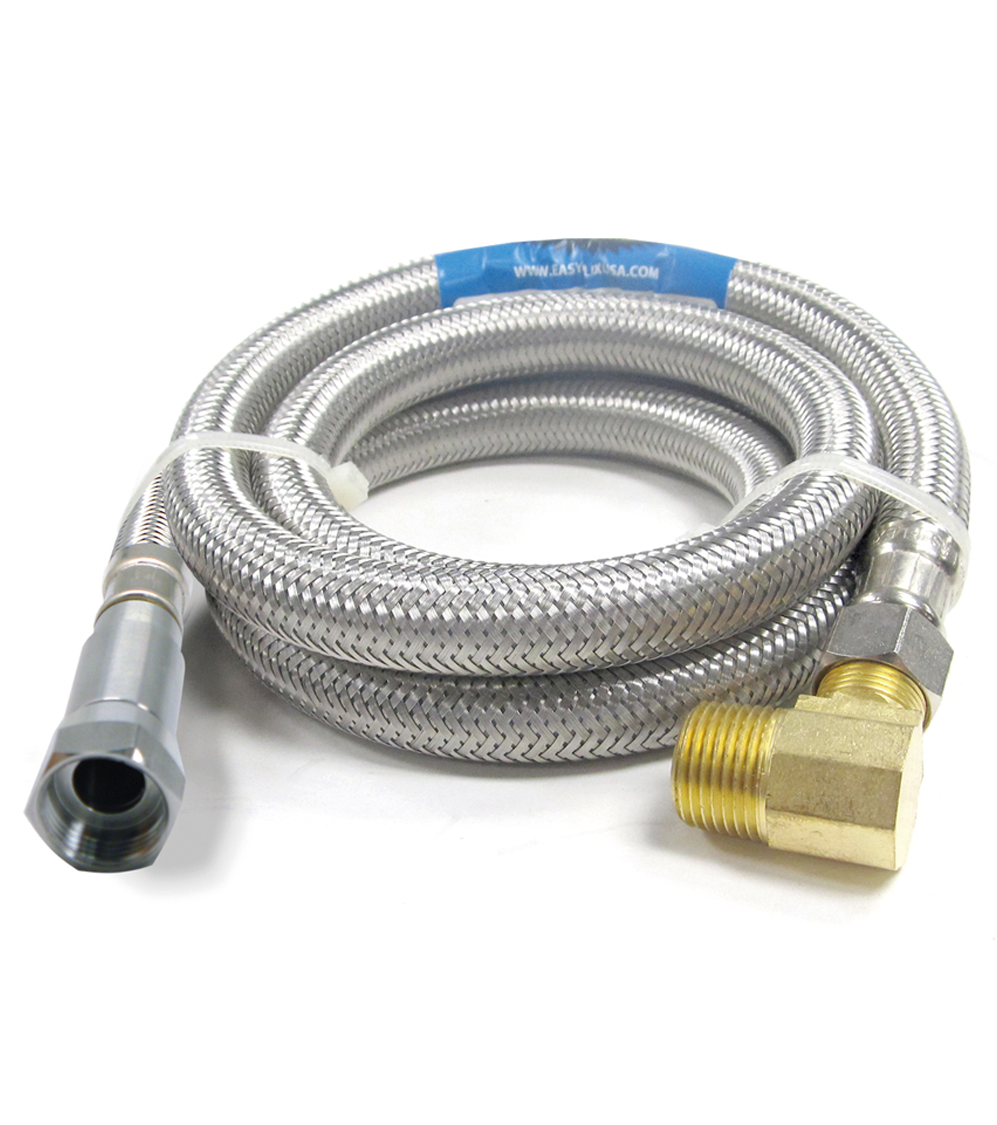

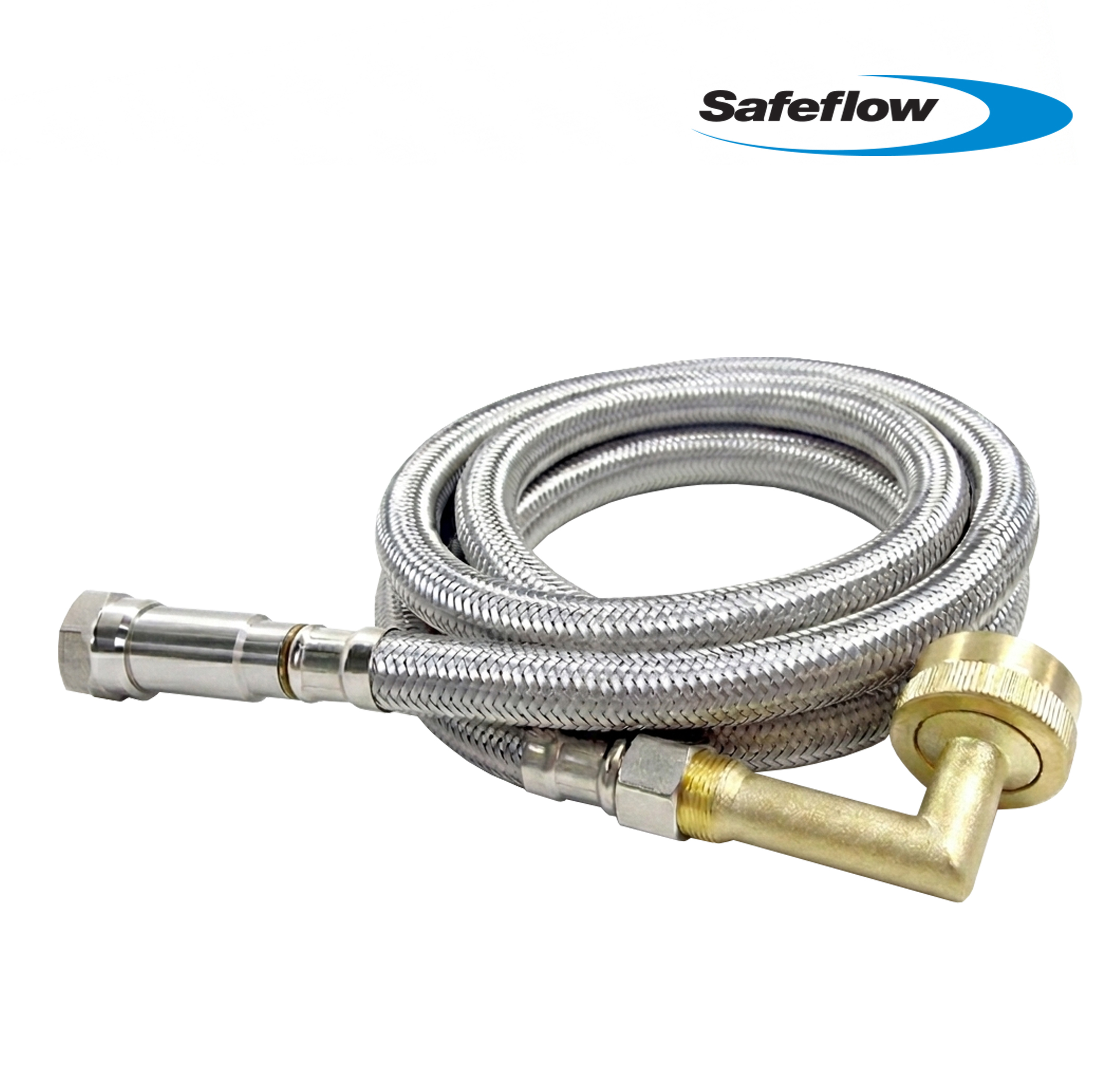

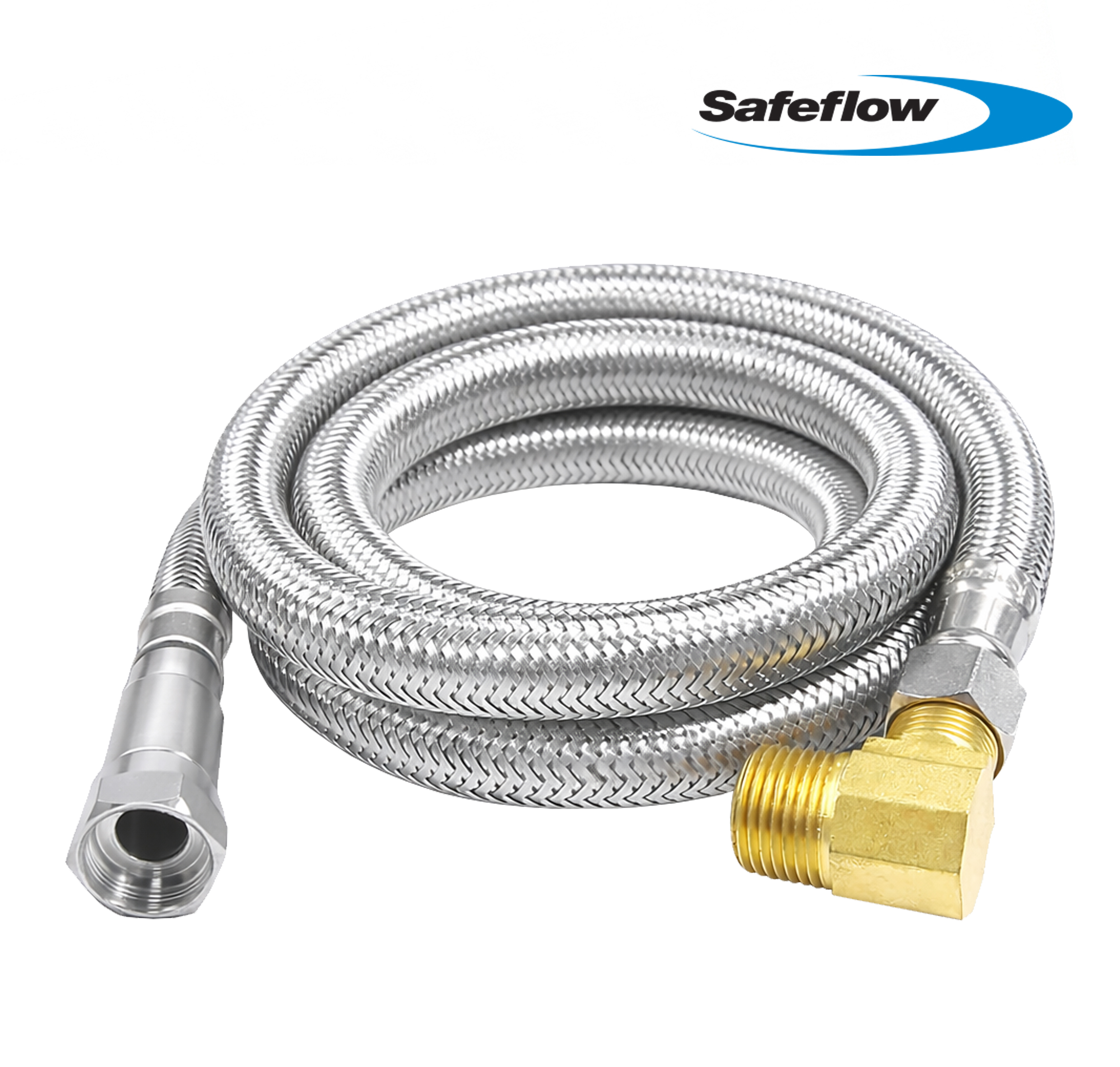

Introducing our durableKoflex braided stainless steel water connectors for dishwashers, equipped with Safeflow – an EFV (Excess Flow Valve) that helps prevent catastrophic water damage from burst lines or disconnections. These connectors feature a reinforced PVC inner hose and braided stainless steel jacket for added strength and protection. Installation is easy, with no cutting or soldering required. Our connectors come in multiple sizes and lengths and feature corrosion-resistant chrome plated brass hex nuts and a secure 12-point pneumatic crimp seal.
Models
-
Part #
Description
Qty/Box
KF-DC-38C38L-48V
3/8″ C x 3/8″ EL, Excess Flow Shut-off Valve, 48″
50
KF-DC-38C38L-60V
3/8″ C x 3/8″ EL, Excess Flow Shut-off Valve, 60″
50
KF-DC-38C38L-72V
3/8″ C x 3/8″ EL, Excess Flow Shut-off Valve, 72″
50
KF-DC-38C38L-96V
3/8″ C x 3/8″ EL, Excess Flow Shut-off Valve, 96″
50
-
Part #
Description
Qty/Box
KF-DC-12C38L-60
SS Braided Dishwasher Connector, 1/2″ C x 3/8″ EL, 60″
50
-
Part #
Description
Qty/Box
KF-DC-38CHBL-48V
3/8″ C x 3/4″ HB Elbow, Excess Flow Shut-off Valve, 48″
50
KF-DC-38CHBL-60V
3/8″ C x 3/4″ HB Elbow, Excess Flow Shut-off Valve, 60″
50
KF-DC-38CHBL-72V
3/8″ C x 3/4″ HB Elbow, Excess Flow Shut-off Valve, 72″
50
Technical Data
CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE
- cUPC / NSF 61 Compliant for safe drinking water
- NSF 372 Compliant : Lead-Free
- ASME A 112.18.6-2009 / CSA B 125.6-2009
Materials
| Jacket | Braided Stainless Steel 304 |
| Inner Hose | Reinforced PVC |
| Fittings | Chrome-Plated Brass |
Technical Data
| Rated Temperature | -40° F to 180° F (-40° C to 82° C) |
| Rated Working Pressure | 125 psi (8.6 bar) |
| Minimum Flow | 2.0 gpm |
| Shut-off Flow | 2.5 – 3.5 gpm |
