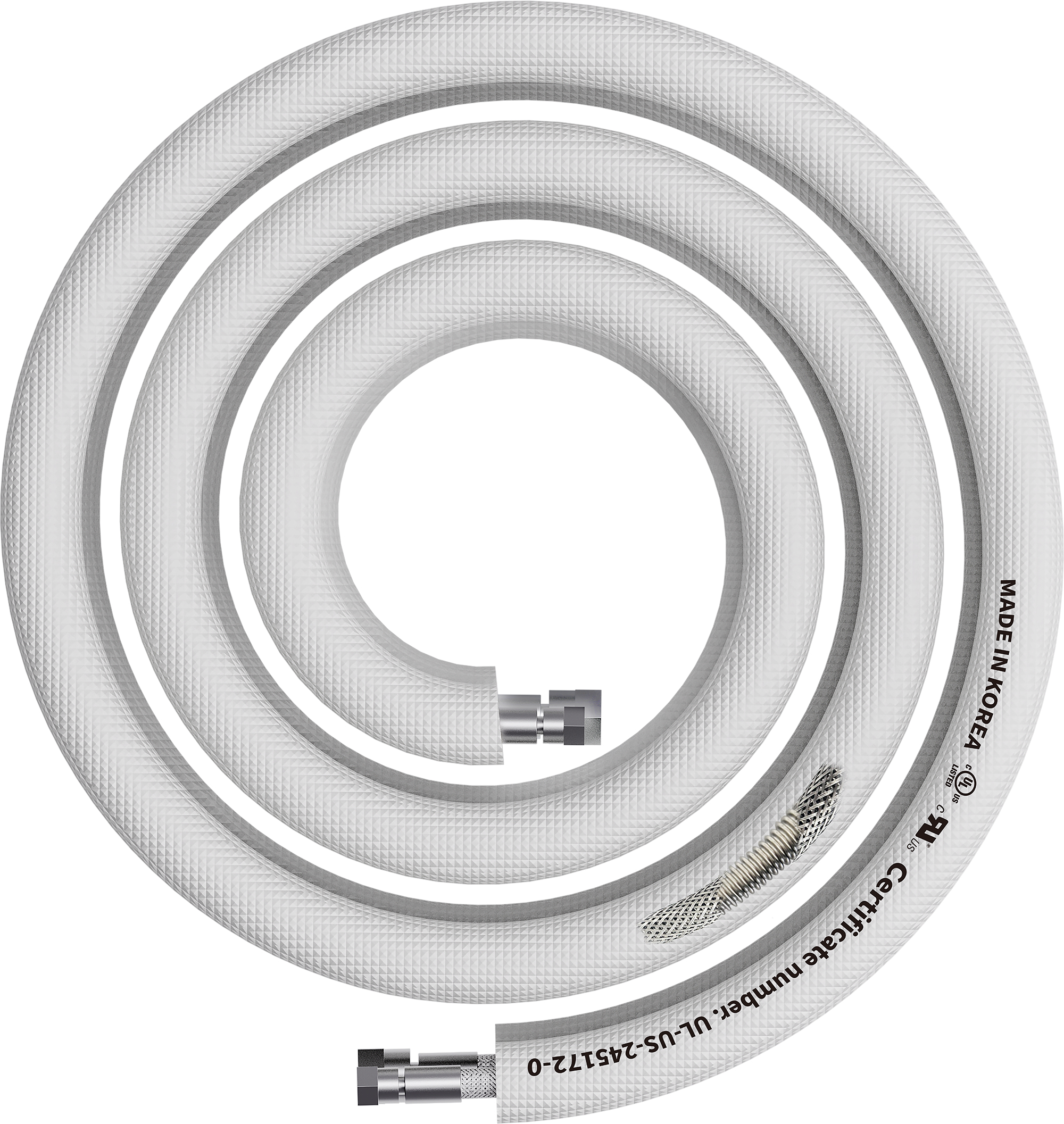

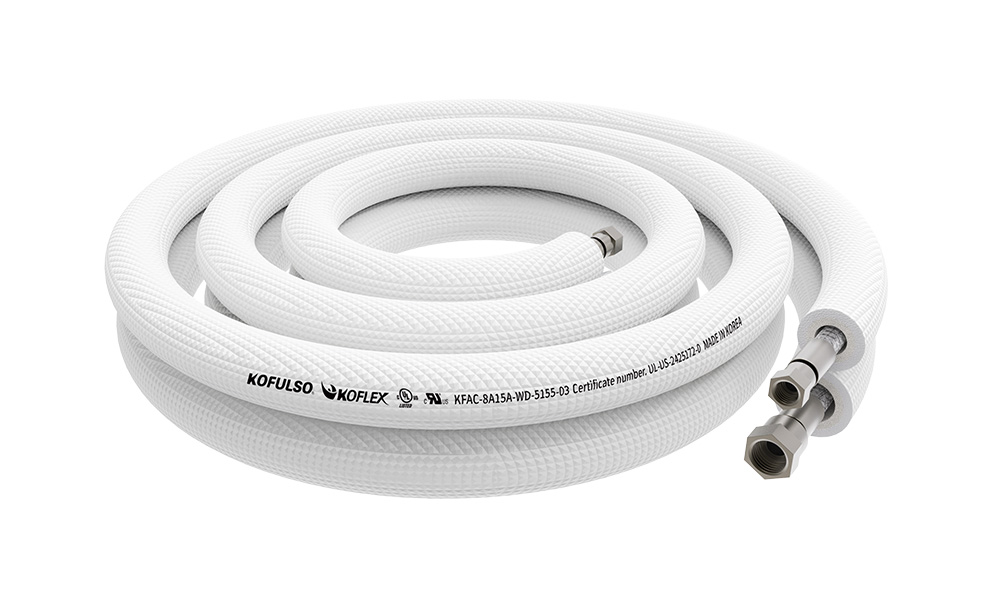

LINESET

Applications
• Heating Ventilation Air conditioning & Refrigerationsystem

Benefits
• Easy and quick installation even for beginners
• Can be installed anywhere for home or industrial use
• Resistant to Scaling & Corrosion
• 360° flexible banding with no change in inner diameter
• Product life is 50% longer than copper pipe

목록으로

Models

Technical Data

World's first UL



Certifications & Approvals

• UL - US - 2425172 - 0

• UL - CA - 2419783 - 0

• FASTBend Line Set is UL Recognized to 700PSI and can be used with  synthetic refrigerants.

  R410A Engineered and tested.


Specification

PropertiesModel AModel B
Model C
Operating Pressure700psig
Tube inside diameterLiquid1/4"1/4"3/8"
Suction3/8"1/2"5/8"
Length3ft ~ 50ft
MaterialTubeAISI 304
Braid JacketAISI 304
Wall Thickness0.012" or 0.3mm
NutAISI 304
InsulatorFoamed Polythylene
Tube TypeBraided Corrugated Stainless Steel Tube
Approved RefrigerantsR410A, R32
FittingFlare Nut
PackagingUnioin Connector
