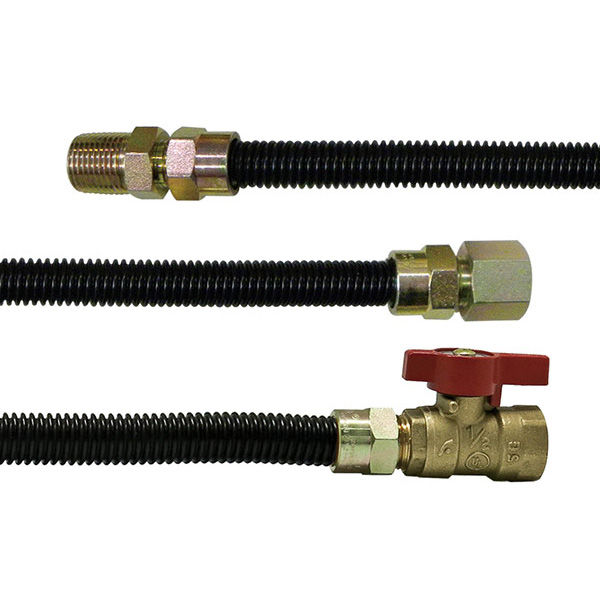

3/8” ID (1/2”) OD 검정 코팅 스테인리스 가스 커넥터 Gastop EFV

Koflex 검정 코팅 스테인리스 가스 커넥터를 소개합니다. Gastop EFV가 포함된 유연성, 내구성, 안전성의 궁극적 솔루션입니다.

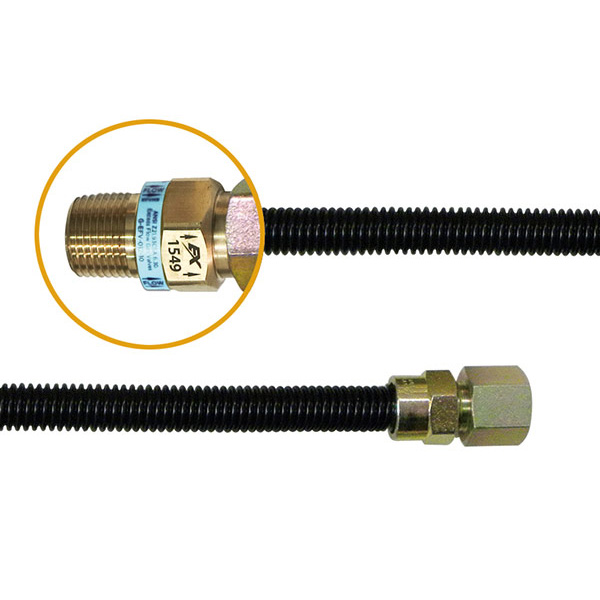

우리의 CSA 인증 커넥터는 가스 누출로 인한 손상을 방지하는 Gastop EFV가 특징이며, 누출 발생 시 자동으로 가스 흐름을 차단합니다. 다양한 크기의 Gastop EFV 피팅을 제공하여 모든 응용 분야에 적합합니다. 또한, 노동 비용 절감, 교체 가능한 피팅, 부식 및 스케일링 저항, 15회 이상의 90° 트위스트에도 견딜 수 있는 내구성을 추가적인 장점으로 제공합니다.

적용분야

-건조기
-벽난로
-난방기
-옥상 유닛
-제조 주택
-탱크리스 온수기 및 보일러
-오븐, 레인지, BBQ 그릴

목록으로

Models

  • 1/4” ID (3/8”) OD 검정 코팅 스테인리스 가스 커넥터 Gastop EFV

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-10A10-12

    1/2″ M.EFV x 1/2″ MIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A10-18

    1/2″ M.EFV x 1/2″ MIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A10-24

    1/2″ M.EFV x 1/2″ MIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A10-30

    1/2″ M.EFV x 1/2″ MIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A10-36

    1/2″ M.EFV x 1/2″ MIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A10-48

    1/2″ M.EFV x 1/2″ MIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A10-60

    1/2″ M.EFV x 1/2″ MIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-10A10-72

    1/2″ M.EFV x 1/2″ MIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-10A11-12

    1/2″ M.EFV x 1/2″ FIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A11-18

    1/2″ M.EFV x 1/2″ FIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A11-24

    1/2″ M.EFV x 1/2″ FIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A11-30

    1/2″ M.EFV x 1/2″ FIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A11-36

    1/2″ M.EFV x 1/2″ FIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A11-48

    1/2″ M.EFV x 1/2″ FIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A11-60

    1/2″ M.EFV x 1/2″ FIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-10A11-72

    1/2″ M.EFV x 1/2″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-10A12-12

    1/2″ M.EFV x 3/8″ MIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A12-18

    1/2″ M.EFV x 3/8″ MIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A12-24

    1/2″ M.EFV x 3/8″ MIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A12-30

    1/2″ M.EFV x 3/8″ MIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A12-36

    1/2″ M.EFV x 3/8″ MIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A12-48

    1/2″ M.EFV x 3/8″ MIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A12-60

    1/2″ M.EFV x 3/8″ MIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-10A12-72

    1/2″ M.EFV x 3/8″ MIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-10A13-12

    1/2″ M.EFV x 3/8″ FIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A13-18

    1/2″ M.EFV x 3/8″ FIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A13-24

    1/2″ M.EFV x 3/8″ FIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-30

    1/2″ M.EFV x 3/8″ FIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A13-36

    1/2″ M.EFV x 3/8″ FIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-48

    1/2″ M.EFV x 3/8″ FIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-10A13-60

    1/2″ M.EFV x 3/8″ FIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-10A13-72

    1/2″ M.EFV x 3/8″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-12A13-12

    3/8″ M.EFV x 3/8″ FIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-12A13-18

    3/8″ M.EFV x 3/8″ FIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-12A13-24

    3/8″ M.EFV x 3/8″ FIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-12A13-30

    3/8″ M.EFV x 3/8″ FIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-12A13-36

    3/8″ M.EFV x 3/8″ FIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-12A13-48

    3/8″ M.EFV x 3/8″ FIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-12A13-60

    3/8″ M.EFV x 3/8″ FIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-12A13-72

    3/8″ M.EFV x 3/8″ FIP, 72″

    12

  • 3/8” ID (1/2”) OD 검정 코팅 스테인리스 가스 커넥터 Gastop EFV

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-10A10-12

    1/2″ M.EFV x 1/2″ MIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A10-18

    1/2″ M.EFV x 1/2″ MIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A10-24

    1/2″ M.EFV x 1/2″ MIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A10-30

    1/2″ M.EFV x 1/2″ MIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A10-36

    1/2″ M.EFV x 1/2″ MIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A10-48

    1/2″ M.EFV x 1/2″ MIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A10-60

    1/2″ M.EFV x 1/2″ MIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-10A10-72

    1/2″ M.EFV x 1/2″ MIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-10A11-12

    1/2″ M.EFV x 1/2″ FIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A11-18

    1/2″ M.EFV x 1/2″ FIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A11-24

    1/2″ M.EFV x 1/2″ FIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A11-30

    1/2″ M.EFV x 1/2″ FIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A11-36

    1/2″ M.EFV x 1/2″ FIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A11-48

    1/2″ M.EFV x 1/2″ FIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A11-60

    1/2″ M.EFV x 1/2″ FIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-10A11-72

    1/2″ M.EFV x 1/2″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-11A11-12

    1/2″ F.EFV x 1/2″ FIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-11A11-18

    1/2″ F.EFV x 1/2″ FIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-11A11-24

    1/2″ F.EFV x 1/2″ FIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-11A11-30

    1/2″ F.EFV x 1/2″ FIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-11A11-36

    1/2″ F.EFV x 1/2″ FIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-11A11-48

    1/2″ F.EFV x 1/2″ FIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-11A11-60

    1/2″ F.EFV x 1/2″ FIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-11A11-72

    1/2″ F.EFV x 1/2″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-10A12-12

    1/2″ M.EFV x 3/8″ MIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A12-18

    1/2″ M.EFV x 3/8″ MIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A12-24

    1/2″ M.EFV x 3/8″ MIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A12-30

    1/2″ M.EFV x 3/8″ MIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A12-36

    1/2″ M.EFV x 3/8″ MIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A12-48

    1/2″ M.EFV x 3/8″ MIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A12-60

    1/2″ M.EFV x 3/8″ MIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-10A12-72

    1/2″ M.EFV x 3/8″ MIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-10A13-12

    1/2″ M.EFV x 3/8″ FIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A13-18

    1/2″ M.EFV x 3/8″ FIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A13-24

    1/2″ M.EFV x 3/8″ FIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A13-30

    1/2″ M.EFV x 3/8″ FIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A13-36

    1/2″ M.EFV x 3/8″ FIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A13-48

    1/2″ M.EFV x 3/8″ FIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-10A13-60

    1/2″ M.EFV x 3/8″ FIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-10A13-72

    1/2″ M.EFV x 3/8″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-12A13-12

    3/8″ M.EFV x 3/8″ FIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-12A13-18

    3/8″ M.EFV x 3/8″ FIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-12A13-24

    3/8″ M.EFV x 3/8″ FIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-12A13-30

    3/8″ M.EFV x 3/8″ FIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-12A13-36

    3/8″ M.EFV x 3/8″ FIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-12A13-48

    3/8″ M.EFV x 3/8″ FIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-12A13-60

    3/8″ M.EFV x 3/8″ FIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-12A13-72

    3/8″ M.EFV x 3/8″ FIP, 72″

    12

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

United States | CSA USA Standards Association

  • ANSI Z 21.24 Connectors for Gas Appliances
  • ANSI Z 21.75 Connectors for Outdoor Appliances and Manufactured Homes

Canada | CSA Canadian Standards Association

  • CSA 6.10 Connectors for Gas Appliances
  • CSA 6.27 Connectors for Outdoor Appliances and Manufactured
  • Meets the requirements of CSA B149.1 National Gas and Propane Installation Code
