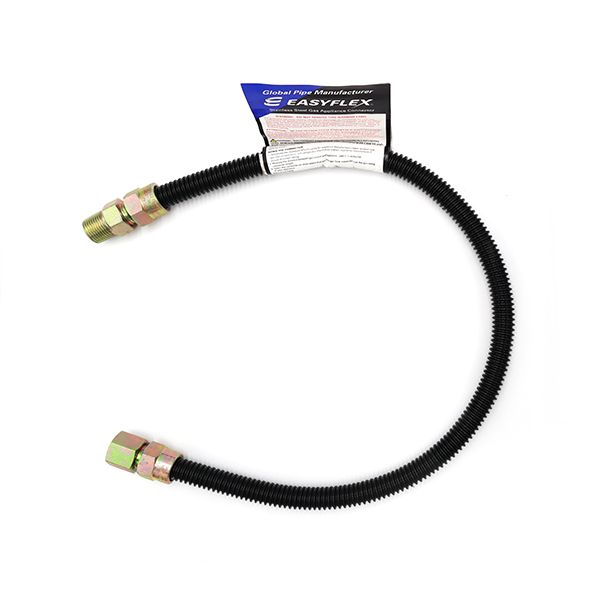

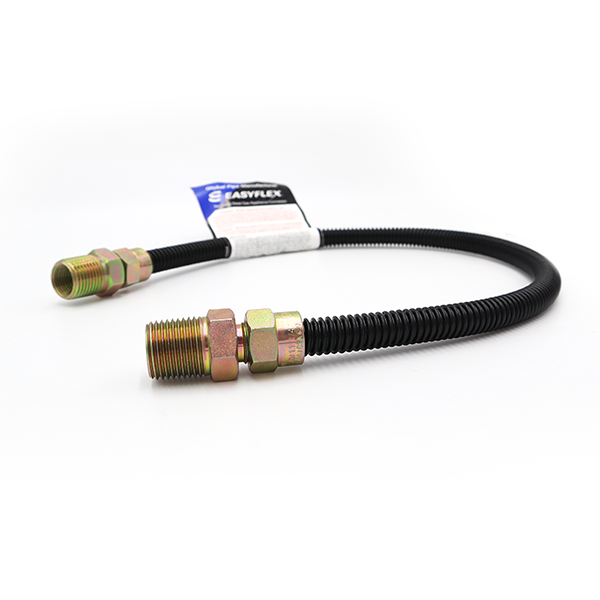

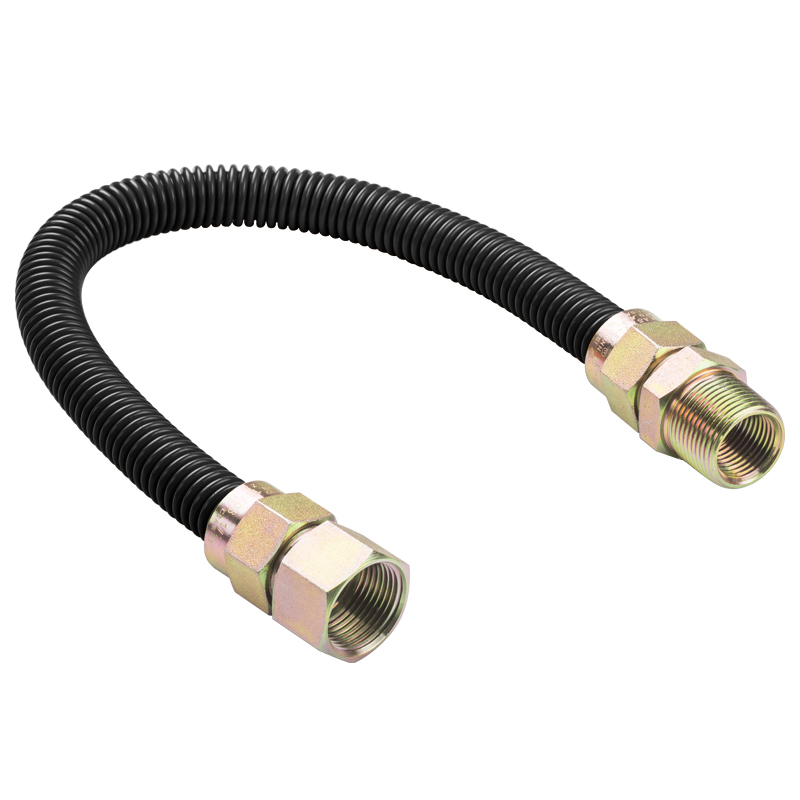

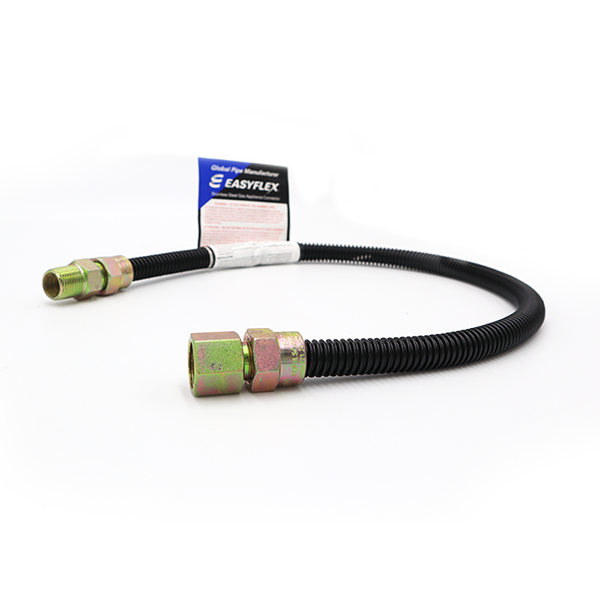

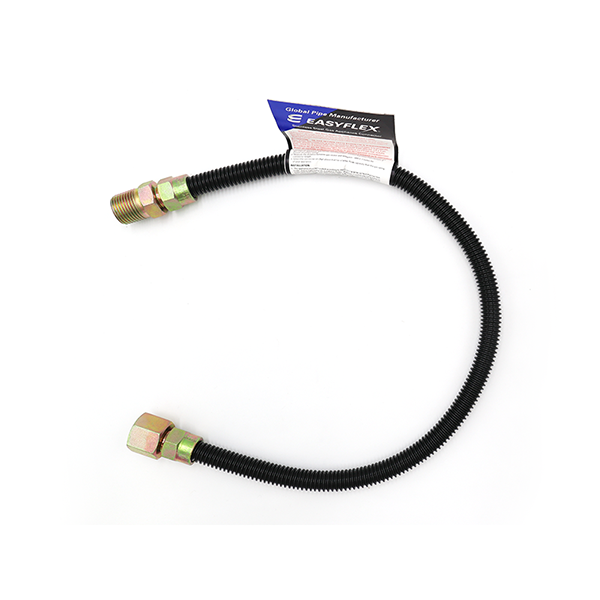

1/4” ID (3/8”) OD 검은색 코팅 스테인리스 가스 연결관

Koflex 검은색 코팅 스테인리스 가스 연결관을 소개합니다 – 유연성, 내구성, 기능성이 결합된 최고의 제품입니다. CSA 디자인 인증을 받은 당사의 연결관은 100% 누수 테스트를 거쳐 고객이 요구하는 품질과 안전을 보장합니다. 다양한 피팅, 연결 크기 및 길이를 제공하여 어떤 용도에도 맞출 수 있습니다. 또한, 당사의 연결관은 노동 비용 절감, 다양한 용도에 맞는 교체 가능한 피팅, 부식 및 스케일링 저항성, 그리고 90도 회전 15회에도 견딜 수 있는 내구성 등의 추가적인 혜택을 제공합니다.

적용분야

-건조기
-벽난로
-난로
-난방기
-옥상 유닛
-제조 주택
-순간 온수기 및 보일러
-오븐, 레인지, BBQ 그릴

목록으로

Models

  • 1/4” ID (3/8”) OD 검은색 코팅 스테인리스 가스 연결관

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-1010-12

    1/2″ MIP x 1/2″ MIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1010-18

    1/2″ MIP x 1/2″ MIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1010-24

    1/2″ MIP x 1/2″ MIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1010-30

    1/2″ MIP x 1/2″ MIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1010-36

    1/2″ MIP x 1/2″ MIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1010-48

    1/2″ MIP x 1/2″ MIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1010-60

    1/2″ MIP x 1/2″ MIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-1010-72

    1/2″ MIP x 1/2″ MIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-1011-12

    1/2″ MIP x 1/2″ FIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1011-18

    1/2″ MIP x 1/2″ FIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1011-24

    1/2″ MIP x 1/2″ FIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1011-30

    1/2″ MIP x 1/2″ FIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1011-36

    1/2″ MIP x 1/2″ FIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1011-48

    1/2″ MIP x 1/2″ FIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1011-60

    1/2″ MIP x 1/2″ FIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-1011-72

    1/2″ MIP x 1/2″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-1012-12

    1/2″ MIP x 3/8″ MIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1012-18

    1/2″ MIP x 3/8″ MIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1012-24

    1/2″ MIP x 3/8″ MIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1012-30

    1/2″ MIP x 3/8″ MIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1012-36

    1/2″ MIP x 3/8″ MIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1012-48

    1/2″ MIP x 3/8″ MIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1012-60

    1/2″ MIP x 3/8″ MIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-1012-72

    1/2″ MIP x 3/8″ MIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-12

    1/2″ MIP x 3/8″ FIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-18

    1/2″ MIP x 3/8″ FIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-24

    1/2″ MIP x 3/8″ FIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-30

    1/2″ MIP x 3/8″ FIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-36

    1/2″ MIP x 3/8″ FIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-48

    1/2″ MIP x 3/8″ FIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-60

    1/2″ MIP x 3/8″ FIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-1013-72

    1/2″ MIP x 3/8″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    1/4″ (3/8″OD)

    KFGC-014-BE-1213-12

    3/8″ MIP x 3/8″ FIP, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1213-18

    3/8″ MIP x 3/8″ FIP, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1213-24

    3/8″ MIP x 3/8″ FIP, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1213-30

    3/8″ MIP x 3/8″ FIP, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1213-36

    3/8″ MIP x 3/8″ FIP, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1213-48

    3/8″ MIP x 3/8″ FIP, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1213-60

    3/8″ MIP x 3/8″ FIP, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-1213-72

    3/8″ MIP x 3/8″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

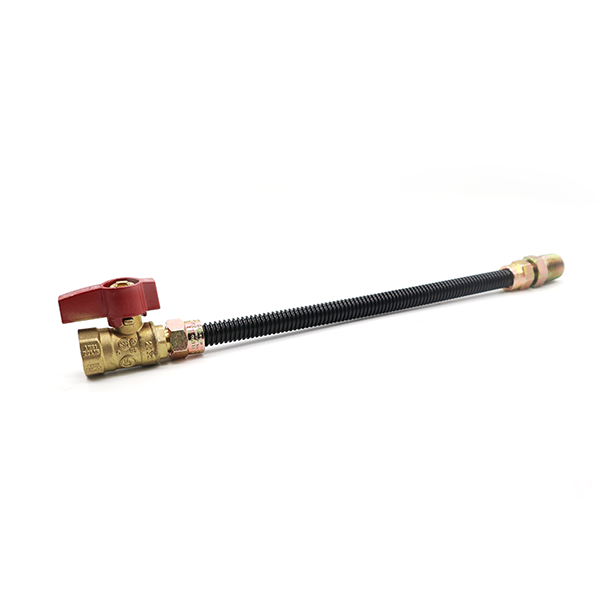

    1/4″ (3/8″OD)

    KFGC-014-BE-1031-12

    1/2″ MIP x 1/2″ B.Valve, 12″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1031-18

    1/2″ MIP x 1/2″ B.Valve, 18″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1031-24

    1/2″ MIP x 1/2″ B.Valve, 24″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1031-30

    1/2″ MIP x 1/2″ B.Valve, 30″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1031-36

    1/2″ MIP x 1/2″ B.Valve, 36″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1031-48

    1/2″ MIP x 1/2″ B.Valve, 48″

    25

    1/4″ (3/8″OD)

    KFGC-014-BE-1031-60

    1/2″ MIP x 1/2″ B.Valve, 60″

    12

    1/4″ (3/8″OD)

    KFGC-014-BE-1031-72

    1/2″ MIP x 1/2″ B.Valve, 72″

    12

  • 3/8” ID (1/2”) OD 검은색 코팅 스테인리스 가스 연결관

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-1010-12

    1/2″ MIP x 1/2″ MIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1010-18

    1/2″ MIP x 1/2″ MIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1010-24

    1/2″ MIP x 1/2″ MIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1010-30

    1/2″ MIP x 1/2″ MIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1010-36

    1/2″ MIP x 1/2″ MIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1010-48

    1/2″ MIP x 1/2″ MIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1010-60

    1/2″ MIP x 1/2″ MIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-1010-72

    1/2″ MIP x 1/2″ MIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-1011-12

    1/2″ MIP x 1/2″ FIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1011-18

    1/2″ MIP x 1/2″ FIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1011-24

    1/2″ MIP x 1/2″ FIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1011-30

    1/2″ MIP x 1/2″ FIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1011-36

    1/2″ MIP x 1/2″ FIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1011-48

    1/2″ MIP x 1/2″ FIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1011-60

    1/2″ MIP x 1/2″ FIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-1011-72

    1/2″ MIP x 1/2″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-1111-12

    1/2″ FIP x 1/2″ FIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1111-18

    1/2″ FIP x 1/2″ FIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1111-24

    1/2″ FIP x 1/2″ FIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1111-30

    1/2″ FIP x 1/2″ FIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1111-36

    1/2″ FIP x 1/2″ FIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1111-48

    1/2″ FIP x 1/2″ FIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1111-60

    1/2″ FIP x 1/2″ FIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-1111-72

    1/2″ FIP x 1/2″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-1012-12

    1/2″ MIP x 3/8″ MIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1012-18

    1/2″ MIP x 3/8″ MIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1012-24

    1/2″ MIP x 3/8″ MIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1012-30

    1/2″ MIP x 3/8″ MIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1012-36

    1/2″ MIP x 3/8″ MIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1012-48

    1/2″ MIP x 3/8″ MIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1012-60

    1/2″ MIP x 3/8″ MIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-1012-72

    1/2″ MIP x 3/8″ MIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-1013-12

    1/2″ MIP x 3/8″ FIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1013-18

    1/2″ MIP x 3/8″ FIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1013-24

    1/2″ MIP x 3/8″ FIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1013-30

    1/2″ MIP x 3/8″ FIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1013-36

    1/2″ MIP x 3/8″ FIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1013-48

    1/2″ MIP x 3/8″ FIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1013-60

    1/2″ MIP x 3/8″ FIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-1013-72

    1/2″ MIP x 3/8″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-1213-12

    3/8″ MIP x 3/8″ FIP, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1213-18

    3/8″ MIP x 3/8″ FIP, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1213-24

    3/8″ MIP x 3/8″ FIP, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1213-30

    3/8″ MIP x 3/8″ FIP, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1213-36

    3/8″ MIP x 3/8″ FIP, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1213-48

    3/8″ MIP x 3/8″ FIP, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1213-60

    3/8″ MIP x 3/8″ FIP, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-1213-72

    3/8″ MIP x 3/8″ FIP, 72″

    12

    ID

    Part #

    Description

    Qty/Box

    3/8″ (1/2″OD)

    KFGC-038-BE-1031-12

    1/2″ MIP x 1/2″ B.Valve, 12″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1031-18

    1/2″ MIP x 1/2″ B.Valve, 18″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1031-24

    1/2″ MIP x 1/2″ B.Valve, 24″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1031-30

    1/2″ MIP x 1/2″ B.Valve, 30″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1031-36

    1/2″ MIP x 1/2″ B.Valve, 36″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1031-48

    1/2″ MIP x 1/2″ B.Valve, 48″

    25

    3/8″ (1/2″OD)

    KFGC-038-BE-1031-60

    1/2″ MIP x 1/2″ B.Valve, 60″

    12

    3/8″ (1/2″OD)

    KFGC-038-BE-1031-72

    1/2″ MIP x 1/2″ B.Valve, 72″

    12

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

United States | CSA USA Standards Association

  • ANSI Z 21.24 Connectors for Gas Appliances
  • ANSI Z 21.75 Connectors for Outdoor Appliances and Manufactured Homes

Canada | CSA Canadian Standards Association

  • CSA 6.10 Connectors for Gas Appliances
  • CSA 6.27 Connectors for Outdoor Appliances and Manufactured
  • Meets the requirements of CSA B149.1 National Gas and Propane Installation Code
