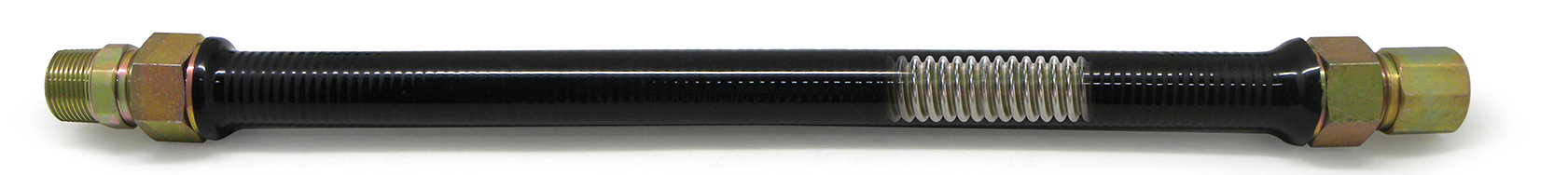

034-BES Series Connector with Fittings

• Tube : Stainless Steel
• Black PVC Coating
• Fitting : Zinc-Plated Steel S45C
• 1-1/8-16 Thread
• 1" OD (3/4" ID)

목록으로

Models

  • ID

    Part #

    Description

    Qty/Box

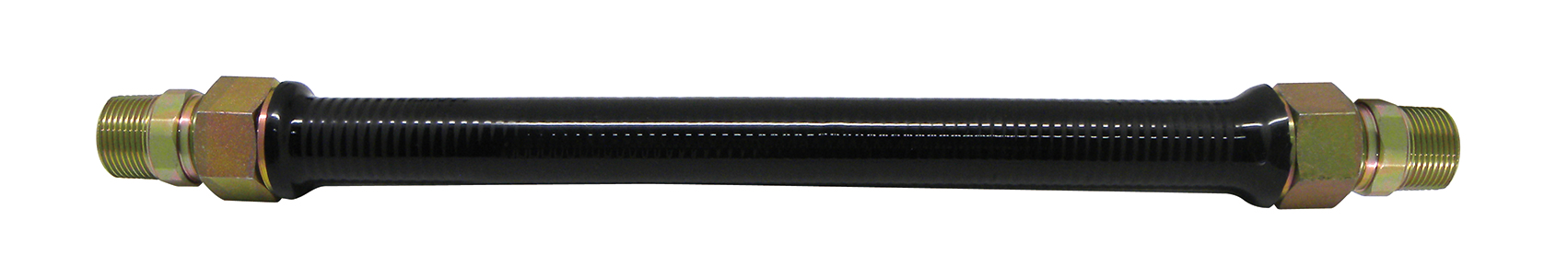

    3/4" (1"OD)

    KFGC-034-BES-1414--24

    3/4" MIP x 3/4" MIP, 24″

    20

    3/4" (1"OD)

    KFGC-034-BES-1414-36

    3/4" MIP x 3/4" MIP, 36″

    20

    3/4" (1"OD)

    KFGC-034-BES-1414--48

    3/4" MIP x 3/4" MIP, 48″

    20

    3/4" (1"OD)

    KFGC-034-BES-1414--60

    3/4" MIP x 3/4" MIP, 60″

    20

    3/4" (1"OD)

    KFGC-034-BES-1414-72

    3/4" MIP x 3/4" MIP, 72″

    20

    ID

    Part #

    Description

    Qty/Box

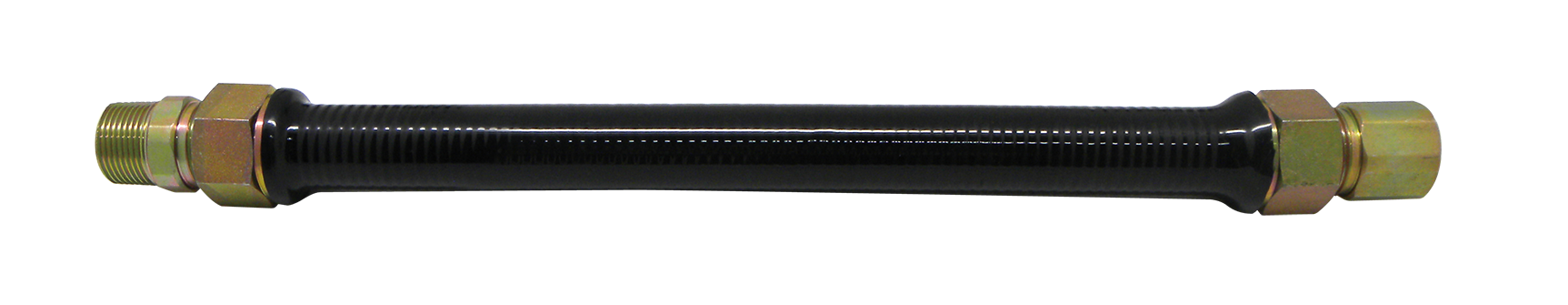

    3/4" (1"OD)

    KFGC-034-BES-1415-24

    3/4" MIP x 3/4" FIP, 24″

    20

    3/4" (1"OD)

    KFGC-034-BES-1415-36

    3/4" MIP x 3/4" FIP, 36″

    20

    3/4" (1"OD)

    KFGC-034-BES-1415-48

    3/4" MIP x 3/4" FIP, 48″

    20

    3/4" (1"OD)

    KFGC-034-BES-1415-60

    3/4" MIP x 3/4" FIP, 60″

    20

    3/4" (1"OD)

    KFGC-034-BES-1415-72

    3/4" MIP x 3/4" FIP, 72″

    20

Technical Data



CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • ANSI Z 21.24 / CSA 6.10
  • ANSI Z 21.75 / CSA 6.27

Materials

TubingStainless Steel 304 (ASTM A240)
CoatingPVC
FittingZinc-Plated Steel S45C
BraidStainless Steel 304(ASTM A240)



Pressure & Temperature

Rated Operating Temperature-40°F to 150°F (-40°C to 65°C)
Rated Pressure0.5 psi



Connector Minimum Flow Capacity

Straight Length Capacity (BTU/Hr., 0.64 SpGr., 1,000 BTU per cubic ft. at 0.5″ W.C. pressure drop)

SeriesIDOD12″18″24″30″36″48″60″72″
0141/4″5/8″48,000
43,800
40,000
36,400
33,400
28,300
24,900
23,100
0383/8″1″102,000
93,100
85,000
77,100
71,100
60,500
53,200
49,100
0121/2"
5/8"
180,000164,200
150,000
136,000
125,000
106,000
93,200
86,000
0343/4"
1"
290,900
290,900
290,900
270,500
255,900
215,900
197,400
173,900

The above flow capacities are the minimum performance requirement per ANSI Z 21.24/ CSA 6.10 and ANSI Z 21.75/ CSA 6.27. koflex Gas Connectors exceed these minimum flow capacity requirements.
