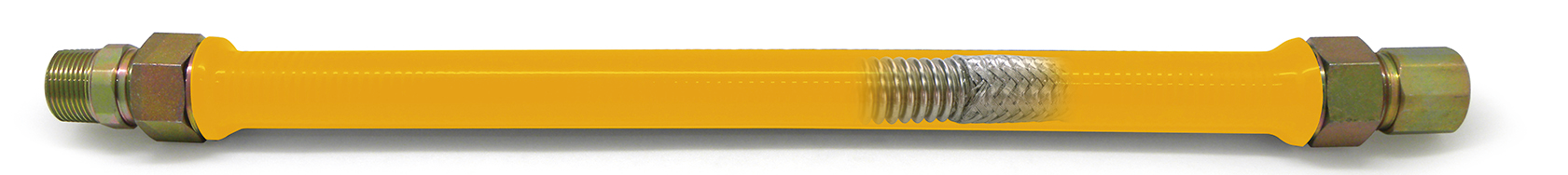

012-BJC Series Connector with Fittings

• CSST Tubing : Stainless Steel 304 (ASTM A 240)
• Fittings : Zinc-Plated Steel S45C
• Braid : Stainless Steel 304 (ASTM A 240)
• Coating : Yellow PVC

목록으로

Models

  • ID

    Part #

    Description

    Qty/Box

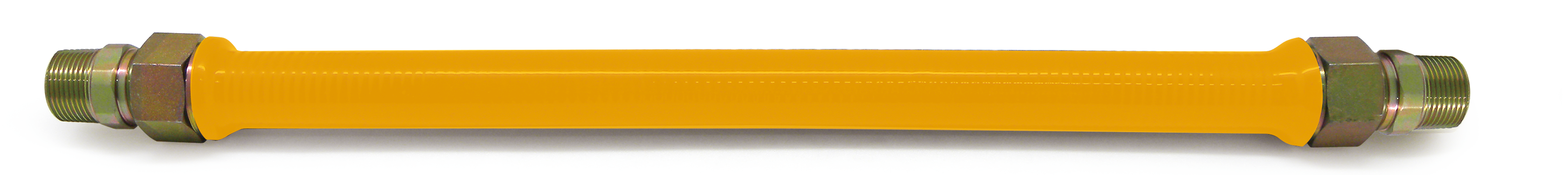

    1/2″ (5/8″OD)

    KFGC-012-BJC-1010-24

    1/2″ MIP x 1/2″ MIP, 24″

    20

    1/2″ (5/8″OD)

    KFGC-012-BJC-1010-36

    1/2″ MIP x 1/2″ MIP, 36″

    20


    ID

    Part #

    Description

    Qty/Box

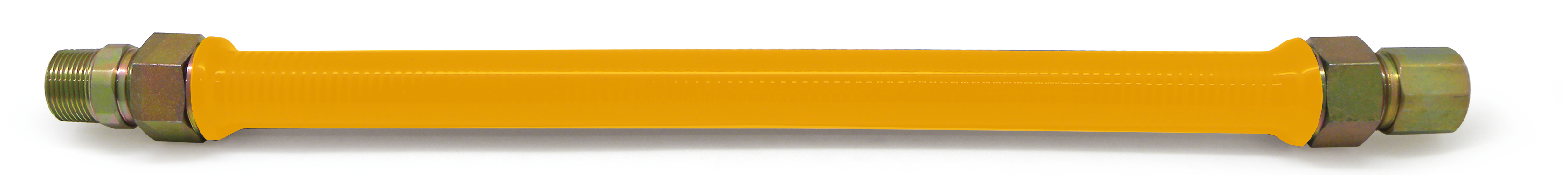

    1/2″ (5/8″OD)

    KFGC-012-BJC-1011-24

    1/2″ MIP x 1/2″ FIP, 24″

    20

    1/2″ (5/8″OD)

    KFGC-012-BJC-1011-36

    1/2″ MIP x 1/2″ FIP, 36″

    20

Technical Data


CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • ANSI Z 21.24 / CSA 6.10
  • ANSI Z 21.75 / CSA 6.27

Materials

TubingStainless Steel 304 (ASTM A240)
CoatingPVC
FittingZinc-Plated Steel S45C
BraidStainless Steel 304(ASTM A240)



Pressure & Temperature

Rated Operating Temperature-40°F to 150°F (-40°C to 65°C)
Rated Pressure0.5 psi



Connector Minimum Flow Capacity

Straight Length Capacity (BTU/Hr., 0.64 SpGr., 1,000 BTU per cubic ft. at 0.5″ W.C. pressure drop)

Series

ID

OD

12″

18″

24″

30″

36″

48″

60″

72″

0141/4"
3/8"
48,000
43,800
40,000
36,400
33,400
28,300
24,900
23,100
0383/8"
1/2"
102,000
93,100
85,000
77,100
71,100
60,500
53,200
49,100
012
1/2"
5/8"
180,000
164,200
150,000
136,000
125,000
106,000
93,200
86,000
034
3/4"
1"
290,900
290,900
290,900
270,500
255,900
215,000
197,400
173,900

The above flow capacities are the minimum performance requirement per ANSI Z 21.24/ CSA 6.10 and ANSI Z 21.75/ CSA 6.27. koflex Gas Connectors exceed these minimum flow capacity requirements.
