Commercial Gas Connectors
Gas Connector Kits
Gas Connector-parts

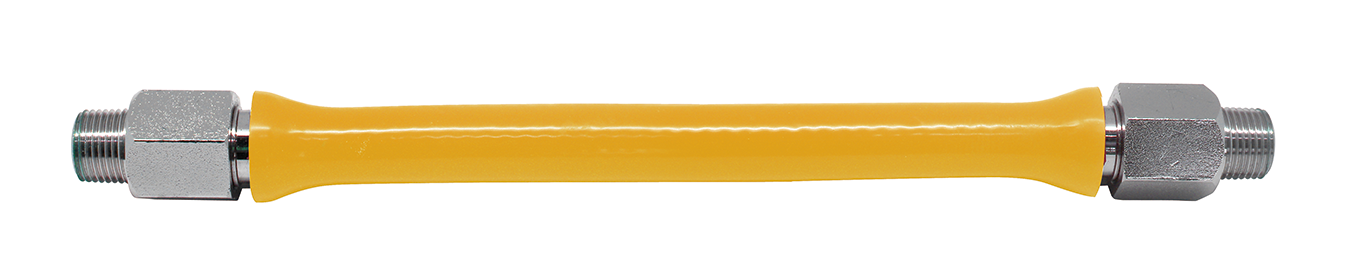

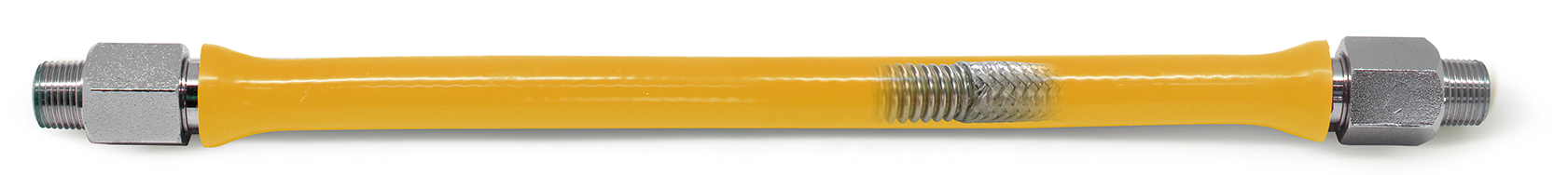

100-BJ Series Connector with rotational Fittings

• Food Service Gas Connector
• Tube : Braided Stainless Steel Construction (ASTM A 240)
• Yellow PVC Coating
• Fittings : Zinc-Plated Steel S45C
• 360° Rotational Ends
• 1-1/4" OD (1" ID)

목록으로

Models

ID
Part #
Description
Qty/Box
1" (1-1/4"OD)
KFGC-100-BJ-1616-24
1" MIP x 1" MIP, 24″
20
1" (1-1/4"OD)
KFGC-100-BJ-1616-36
1" MIP x 1" MIP, 36″
20
1" (1-1/4"OD)
KFGC-100-BJ-1616-48
1" MIP x 1" MIP, 48″
20
1" (1-1/4"OD)
KFGC-100-BJ-1616-60
1" MIP x 1" MIP, 60″
20

Technical Data

CERTIFICATIONS, APPROVALS

ANSI Z 21.69 / CSA 6.16 Connectors for Movable Gas Appliances.

Materials

Tubing	Stainless Steel 304 (ASTM A240)
Coating	PVC
Fitting	Zinc-Plated Steel S45C
Braid	Stainless Steel 304(ASTM A240)

Pressure & Temperature

Rated Operating Temperature	-40°F to 150°F (-40°C to 65°C)
Rated Pressure	0.5 psi

Connector Minimum Flow Capacity

Straight Length Capacity (BTU/Hr., 0.64 SpGr., 1,000 BTU per cubic ft. at 0.5″ W.C. pressure drop)

Series	ID	OD	12″	18″	24″	30″	36″	48″	60″	72″
012	1/2"	5/8"	180,000	164,200	150,000	136,000	125,000	106,000	93,200	86,000
034	3/4"	1"	-	-	290,900	270,500	255,900	215,900	197,400	173,900
100	1"	1/4"	-	-	581,800	545,200	515,900	442,700	398,900	347,300

The above flow capacities are the minimum performance requirement per ANSI Z 21.24/ CSA 6.10 and ANSI Z 21.75/ CSA 6.27. Easyflex Gas Connectors exceed these minimum flow capacity requirements.

ID	Part #	Description	Qty/Box
1" (1-1/4"OD)	KFGC-100-BJ-1616-24	1" MIP x 1" MIP, 24″	20
1" (1-1/4"OD)	KFGC-100-BJ-1616-36	1" MIP x 1" MIP, 36″	20

1" (1-1/4"OD)	KFGC-100-BJ-1616-48	1" MIP x 1" MIP, 48″	20
1" (1-1/4"OD)	KFGC-100-BJ-1616-60	1" MIP x 1" MIP, 60″	20
