FIP x MIP (Multiple Sizes)

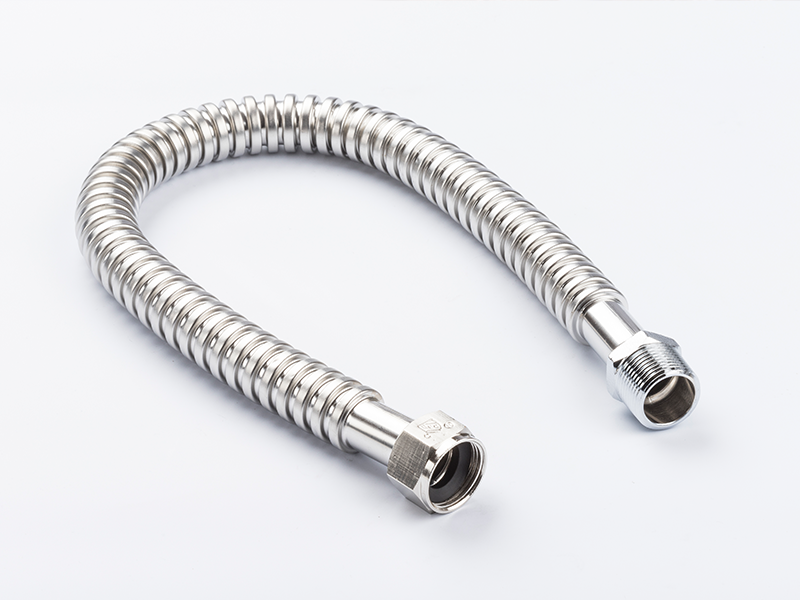

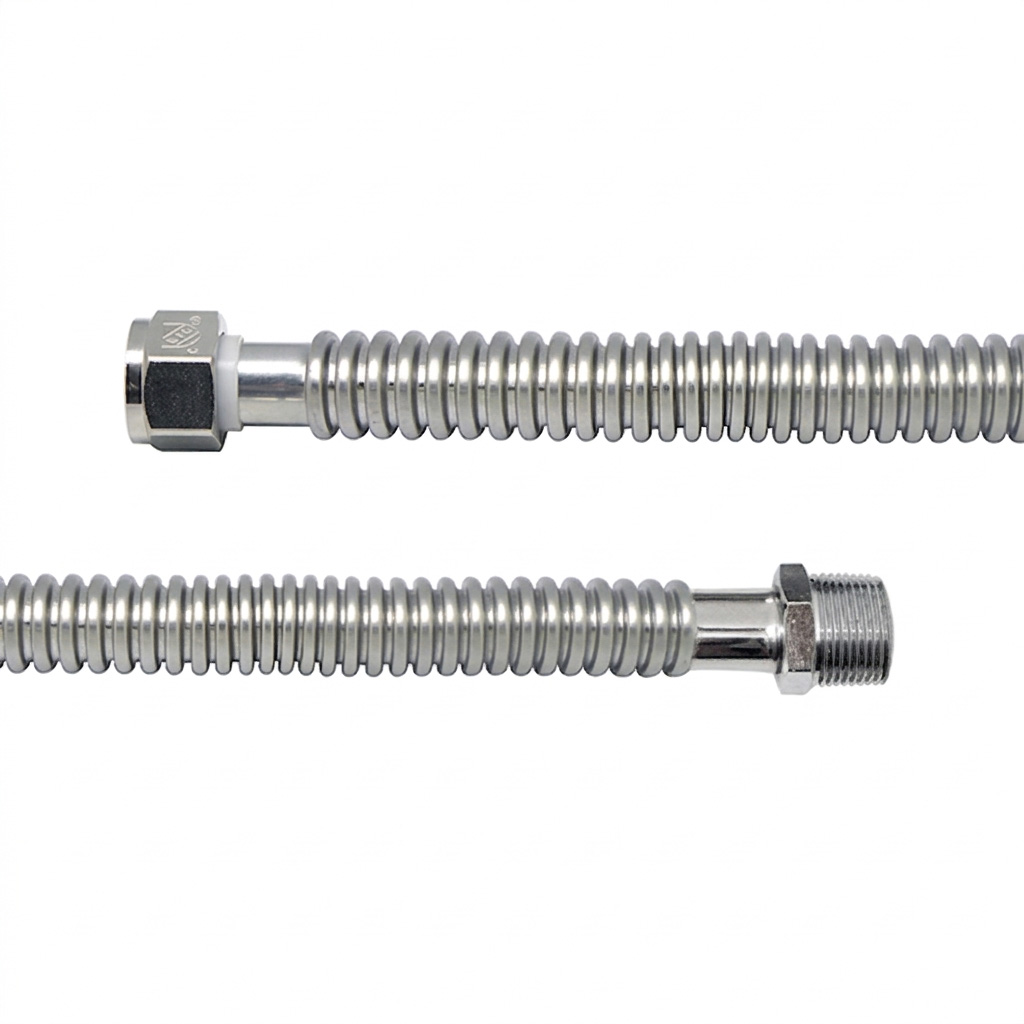

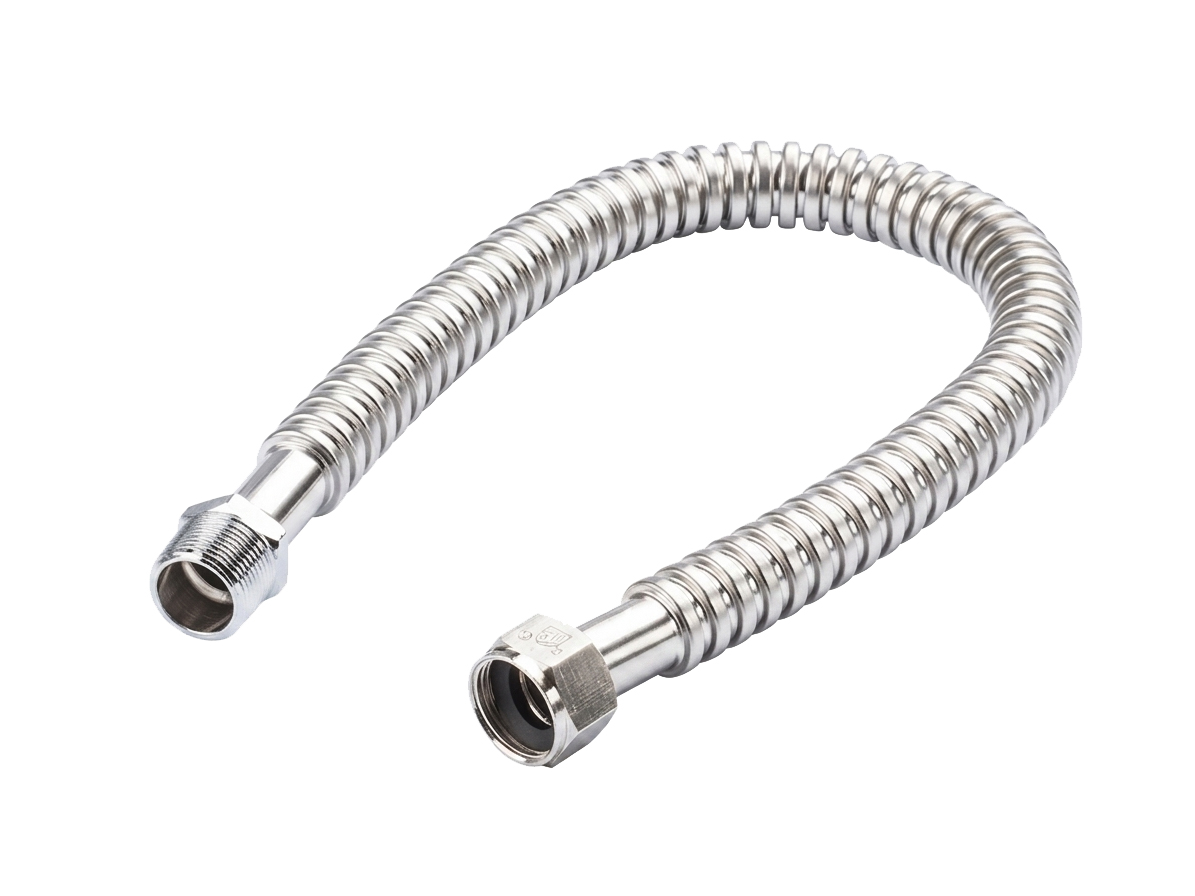

Introducing Koflex 3/4” ID FIP x MIP water heater connectors with three available lengths – 15,” 18″, and 24″. These connectors are built to last with stainless-steel 304 tubing, chrome plated brass connection nuts, and high-quality EPDM gaskets. They are UPC certified and rigorously tested for optimal performance.

-Leak Tested
-Corrosion & Scaling Resistant
-No Special Tools Required
-Minimal Use of Fittings
-Environmentally Friendly Product

Back to List

Models

  • ID

    Part #

    Description

    Qty/Box

    3/4″

    KFWC-034-SS-1011-15

    3/4″ FIP x 3/4″ MIP, 15″

    25

    3/4″

    KFWC-034-SS-1011-18

    3/4″ FIP x 3/4″ MIP, 18″

    25

    3/4″

    KFWC-034-SS-1011-24

    3/4″ FIP x 3/4″ MIP, 24″

    25



  • ID

    Part #

    Description

    Qty/Box

    3/4″

    KFWC-034-SS-1013-15

    3/4″ FIP x 1-1/4″ MIP, 15″

    25

    3/4″

    KFWC-034-SS-1013-18

    3/4″ FIP x 1-1/4″ MIP, 18″

    25

    3/4″

    KFWC-034-SS-1013-24

    3/4″ FIP x 1-1/4″ MIP, 24″

    25

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • cUPC Certified
  • ASME A112.18.6-2009/ CSA B125.6-2009
  • NSF 61 Compliant
  • NSF 372 Compliant : Lead-Free



Product Data

TubingStainless Steel 304 (ASTM A240)
Tubing Thickness0.01″ and 0.012″
FittingsChrome-Plated Brass 3771
GasketHigh-Quality EPDM
Lengths Available 15″, 18″, 24″
Sizes Available (ID)3/4″
Thread StandardASME B1.20.1



Technical Data

Working PressureUp to 125 psig
Intermittent Impulse PressureUp to 180 psig
Temperature Rating -40° F to 180° F (-40° C to 82° C)
Minimum Bend Radius2.5″ (Recommended)
