3/4” ID Push Fit x FIP

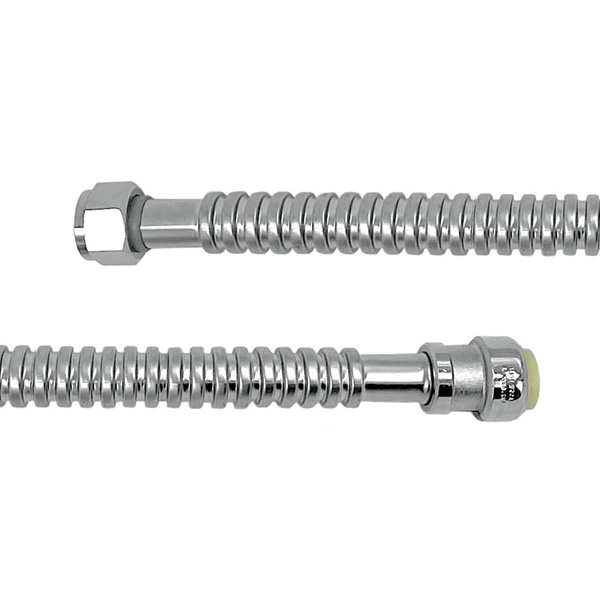

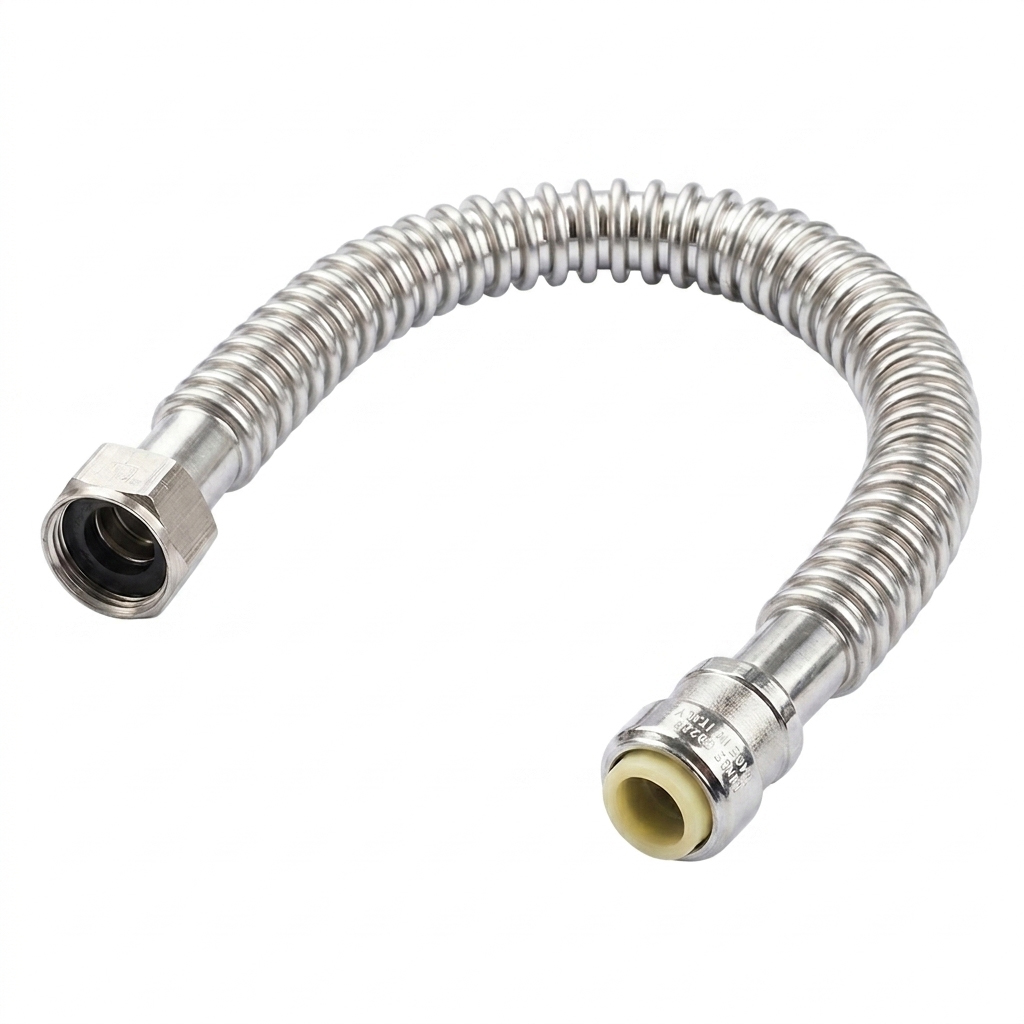

Introducing Koflex 3/4″ ID Push Fit x FIP water heater connectors, available in three lengths: 15″, 18″, and 24″. Made to last, these connectors feature stainless-steel 304 tubing, chrome-plated brass connection nuts, and high-quality EPDM gaskets. The Push Fit design allows for easy installation without the need for any tools. Koflex stands for convenience and reliability, and these push fit connectors embody both qualities. They are UPC certified and have undergone rigorous testing to ensure optimal performance.

-Leak Tested
-Corrosion & Scaling Resistant
-No Special Tools Required
-Minimal Use of Fittings
-Environmentally Friendly Product

Back to List

Models

  • ID

    Part #

    Description

    Qty/Box

    3/4″

    KFWC-034-SS-1050-15

    3/4″ Push Fit x 3/4″ FIP, 15″

    25

    3/4″

    KFWC-034-SS-1050-18

    3/4″ Push Fit x 3/4″ FIP, 18″

    25

    3/4″

    KFWC-034-SS-1050-24

    3/4″ Push Fit x 3/4″ FIP, 24″

    25

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • cUPC Certified
  • ASME A112.18.6-2009/ CSA B125.6-2009
  • NSF 61 Compliant
  • NSF 372 Compliant : Lead-Free


Product Data

TubingStainless Steel 304 (ASTM A240)
Tubing Thickness0.01″ and 0.012″
FittingsChrome-Plated Brass 3771
GasketHigh-Quality EPDM
Lengths Available15″, 18″, 24″
Sizes Available (ID)3/4″
Thread StandardASME B1.20.1



Technical Data

Working PressureUp to 125 psig
Intermittent Impulse PressureUp to 180 psig
Temperature Rating -40° F to 180° F (-40° C to 82° C)
Minimum Bend Radius2.5″ (Recommended)
