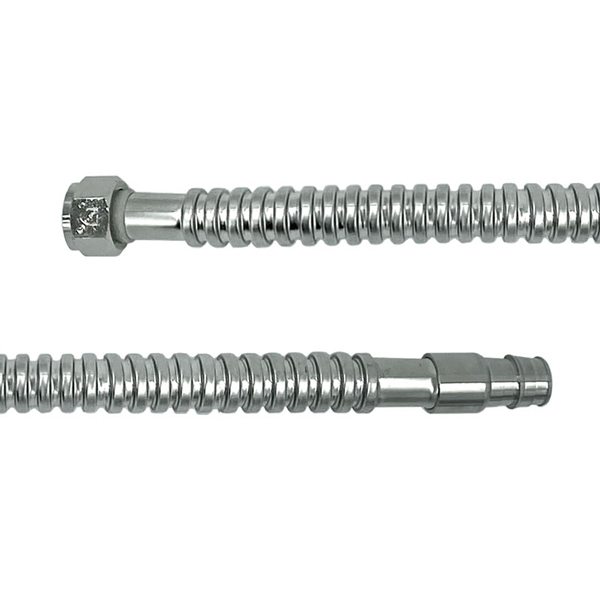

3/4” ID PEX-A Cold Expansion x FIP

Introducing Koflex PEX-A Cold Expansion x FIP water heater connectors. These connectors provide a seamless connection between 3/4″ PEX-A and 3/4″ FIP with lengths two available lengths – 18″ and 24″. The tubing is crafted from premium quality stainless-steel 304 while the connection nuts are made of chrome plated brass. Additionally, the gasket is composed of high-quality EPDM to ensure durability and longevity. These connectors are UPC certified and have undergone stringent quality control measures to deliver optimal performance.

-Factory Leak Tested
-Corrosion & Scaling Resistant
-No Special Tools Required
-Minimal Use of Fittings
-Environmentally Friendly Product

Back to List

Models


  • ID

    Part #

    Description

    Qty/Box

    3/4″

    KFWC-034-SS-1080-18

    3/4″ FIP x 3/4″ Cold Expansion, 18″

    25

    3/4″

    KFWC-034-SS-1080-24

    3/4″ FIP x 3/4″ Cold Expansion, 24″

    25


Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • cUPC Certified
  • ASME A112.18.6-2009/ CSA B125.6-2009
  • NSF 61 Compliant
  • NSF 372 Compliant : Lead-Free



Product Data

TubingStainless Steel 304 (ASTM A240)
Tubing Thickness0.01″ and 0.012″
FittingsChrome-Plated Brass 3771
GasketHigh-Quality EPDM
Lengths Available18″, 24″
Sizes Available (ID)3/4″
Thread StandardASME B1.20.1



Technical Data

Working PressureUp to 125 psig
Intermittent Impulse PressureUp to 180 psig
Temperature Rating -40° F to 180° F (-40° C to 82° C)
Minimum Bend Radius2.5″ (Recommended)
